PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-1b7c9f
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-1b7c9f

Precision-engineered PN 160 Cast Steel Globe SDNR Valve for high-pressure applications. ISO5752 compliant, durable, and reliable.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe SDNR Valve is expertly crafted with a Cast Steel body, Stellited disc and seat, and Stainless Steel stem, ensuring durability and reliability in high-pressure applications. Compliant with ISO5752 standards, this valve offers precision performance and easy installation, making it ideal for industrial and institutional settings. With a flanged connection and handwheel actuator, this valve is designed for seamless integration and smooth operation.

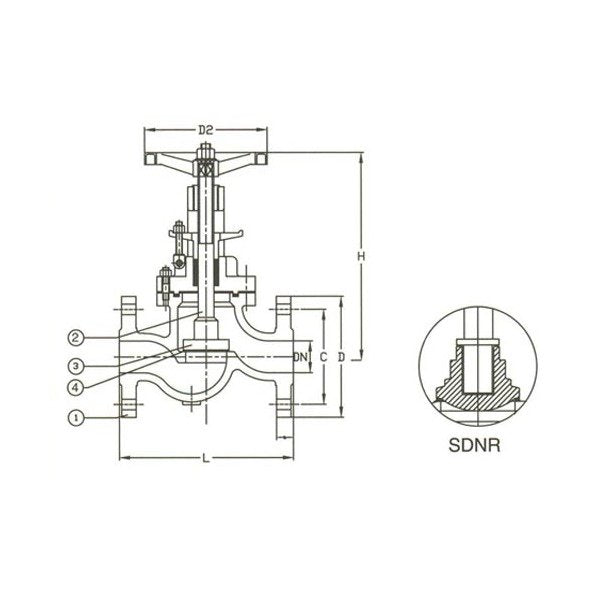

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

170 mm

Specifications D2

200 mm

Specifications Disc Material

Stellited

Specifications H

350 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

260 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

040

Specifications Stem Material

Stainless Steel

Specifications T

28 mm

Specifications Weight

23.0 kg
