PN 160 Cast Steel Globe Valve
PN 160 Cast Steel Globe Valve
SKU:VAL-e6a3d0
High-quality PN 160 Cast Steel Globe Valve for precise fluid control in institutional settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 160 Cast Steel Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
PN 160 Cast Steel Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 160 Cast Steel Globe Valve is a reliable and durable solution for fluid control. Constructed with high-quality materials including Cast Steel body, Stellited disc, and Stainless Steel seat, this valve ensures longevity and performance. Compliant with ISO5752 standards, DIN2501-PN160 flanges, and featuring a Handwheel actuator, it meets the stringent requirements of institutional and industrial applications.

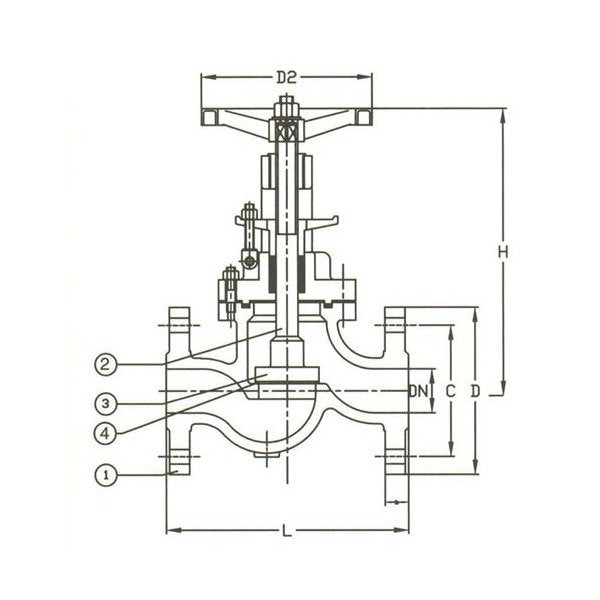

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
110 mm
Specifications Connection
Flanged Drilled
Specifications D
155 mm
Specifications D2
200 mm
Specifications Disc Material
Stellited
Specifications H
330 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications Impaissa Code
755435
Specifications L
260 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stellite
Specifications T
28 mm
Specifications Weight
22.5 kg
