The PN 40 Cast Steel Angle SDNR Valve is a durable and reliable solution for flow control applications. Constructed with a cast steel body and stainless steel components (AISI 4103/4104), this valve ensures longevity and corrosion resistance. The handwheel actuator provides manual control, while the flanged drilled connection allows for easy installation. Meeting DIN2501-PN40 standards, this valve guarantees a secure and efficient operation, making it ideal for industrial and institutional settings.

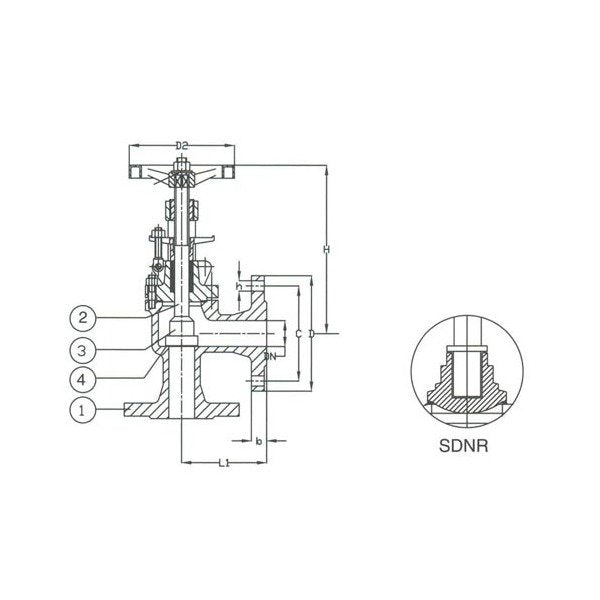

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
280 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
29.00 kg
