PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
SKU:VAL-1d459e
Durable PN 40 Cast Steel Angle SDNR Valve with Handwheel Actuator. Compliant with DIN2501-PN40 standards for precise flow control.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
$129.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Angle SDNR Valve is a reliable solution for fluid control in industrial settings. Constructed with high-quality materials including Cast Steel body, Stainless Steel stem, disc, and seat, it ensures durability and optimal performance. Its actuator features a convenient Handwheel for manual operation. Compliant with DIN2501-PN40 standards, this valve offers precise flow control, leak-tight sealing, and easy installation, making it ideal for institutional applications.

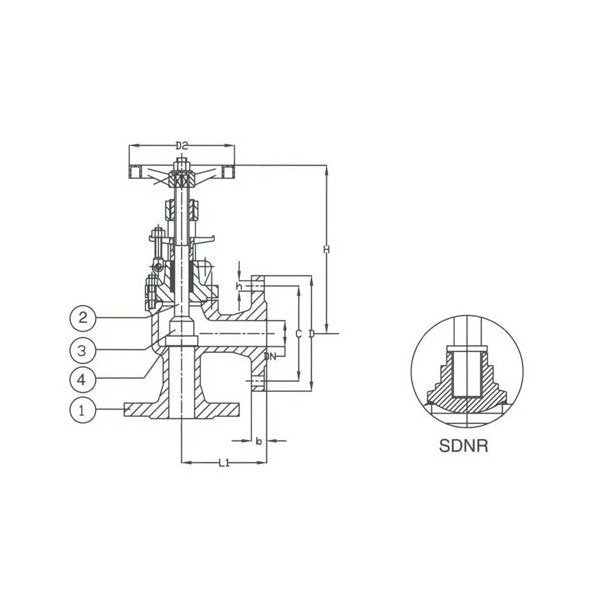

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
75 mm
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
110 mm
Specifications Disc Material
Stainless Steel
Specifications H
135 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
95 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Stem Material
Stainless Steel
Specifications T
18 mm
Specifications Weight
7.6 kg
