PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40

Name: PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-1fb200
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-1fb200

High-performance PN 40 Cast Steel Angle SDNR Valve for industrial applications. Durable construction meeting DIN standards.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 40 Cast Steel Angle SDNR Valve is designed for robust performance in industrial applications. With a body made of Cast Steel, stainless steel components for durability, and precision engineering according to ISO5752, this valve ensures reliable operation. The valve features a Handwheel actuator and Flanged Drilled connections for easy installation. Meeting DIN standards and constructed with high-quality materials, this valve offers long-term efficiency and compliance with institutional procurement requirements.

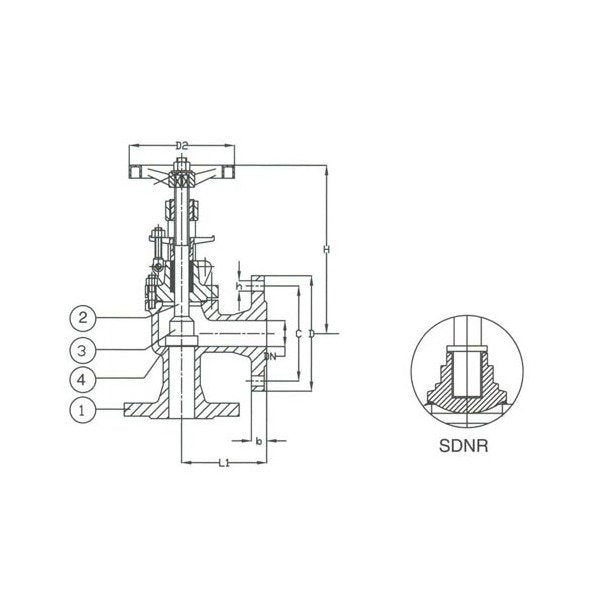

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications D2

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

115 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

040

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

13.4 kg
