PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40

Name: PN 40 Cast Steel Angle SDNR Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-3cdd8b
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-3cdd8b

Durable PN 40 Cast Steel Angle SDNR Valve meeting ISO5752, DIN2501-PN40 standards.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 40 Cast Steel Angle SDNR Valve is expertly crafted with a Cast Steel body, Stainless Steel stem, disc, and seat materials, ensuring durability and reliability. Designed to meet ISO5752 Series 8 and DIN2501-PN40 standards, this valve offers a compact design with precise dimensions. Featuring a Handwheel actuator and Flange Drilled connection, it provides ease of operation and installation for various industrial applications.

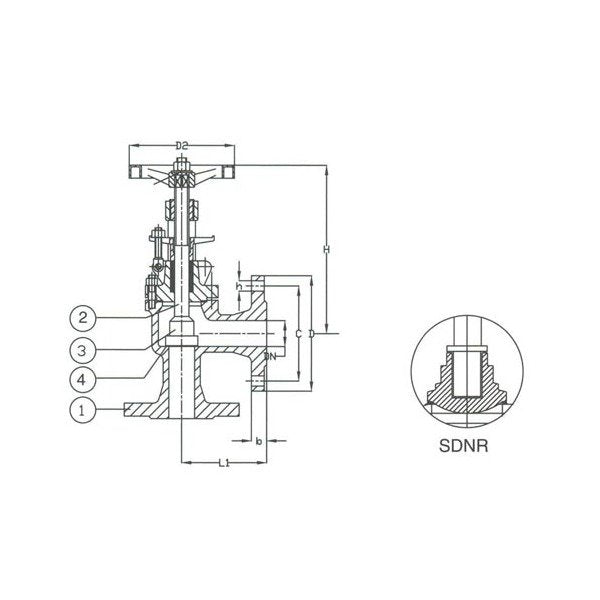

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

170 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

105.0 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

8.9 kg
