PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN 2501-PN40
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN 2501-PN40
SKU:VAL-6fa3e7
High-performance PN 40 Cast Steel Lift Check Valve. DIN 2501-PN40 compliant for reliable pressure control.
Regular price
$699.00
Regular price
Sale price
$699.00
Unit price
per
Initiate Order
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN 2501-PN40
$699.00
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN 2501-PN40
$699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

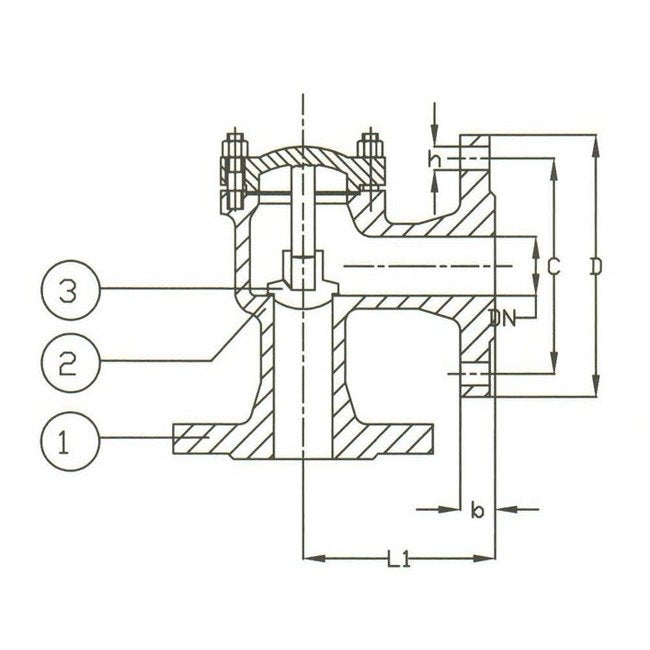

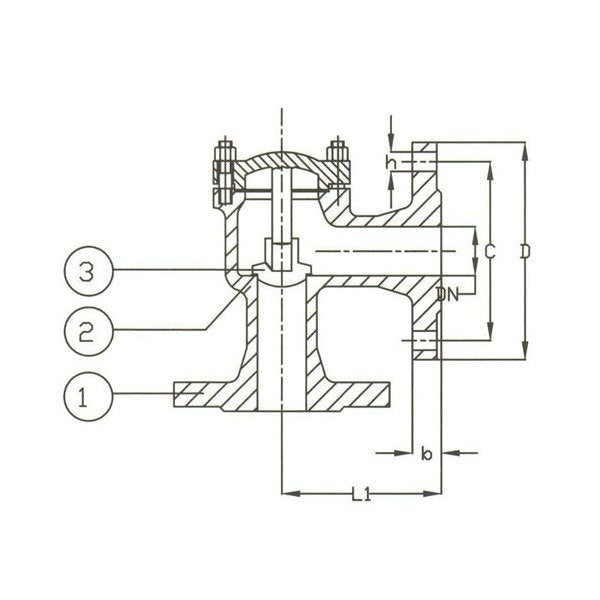

The PN 40 Cast Steel Lift Check Angle Pattern Valve is engineered for maximum durability and performance. Constructed with a cast steel body, stainless steel disc, and seat, this valve ensures reliable operation under high pressure. Compliant with DIN 3202-F1 and DIN 3202-F8 standards, it offers precise face to face and face to center dimensions. The flanges meet DIN2501-PN40 specifications, guaranteeing compatibility and secure connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
250 mm
Specifications Connection
Flanged Drilled
Specifications D
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
25 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
225 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
28 in
Specifications Weight
98 kg
