PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN Check Valve
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN Check Valve
SKU:VAL-caceb9
High-quality PN 40 Cast Steel Lift Check Valve meeting DIN standards, ensures reliable flow control in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Lift Check Angle Pattern Valve - DIN Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Lift Check Angle Pattern Valve is engineered with precision using Cast Steel body, Stainless Steel disc, and seat materials, meeting stringent DIN standards. Featuring a reliable Handwheel actuator and Flanged Drilled connection, this valve ensures efficient hydraulic inspections, durability, and easy installation according to DIN 2501-PN40. With a compact design and corrosion-resistant components, it is ideal for diverse industrial applications requiring reliable flow control.
Ready to Grow Without Cash Flow Constraints?

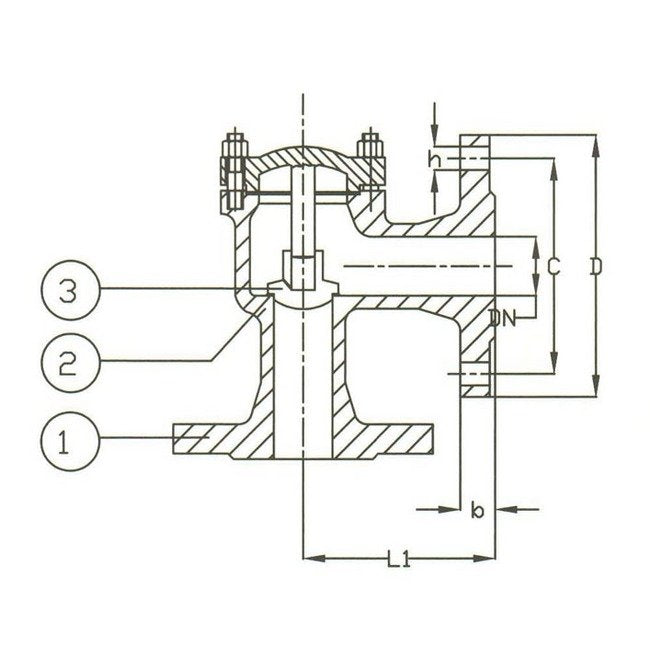

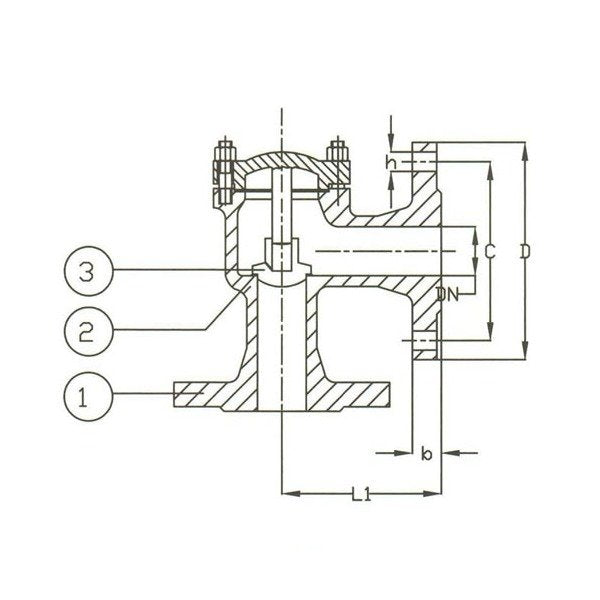

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications Disc Material
Stainless Steel
Specifications H
14 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
18 in
Specifications Weight
5.00 kg
