PN 40 Cast Steel Lift Check Globe Valve
PN 40 Cast Steel Lift Check Globe Valve
SKU:VAL-06ec33
Durable PN 40 Cast Steel Valve, DIN standard compliant, ideal for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 40 Cast Steel Lift Check Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Lift Check Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

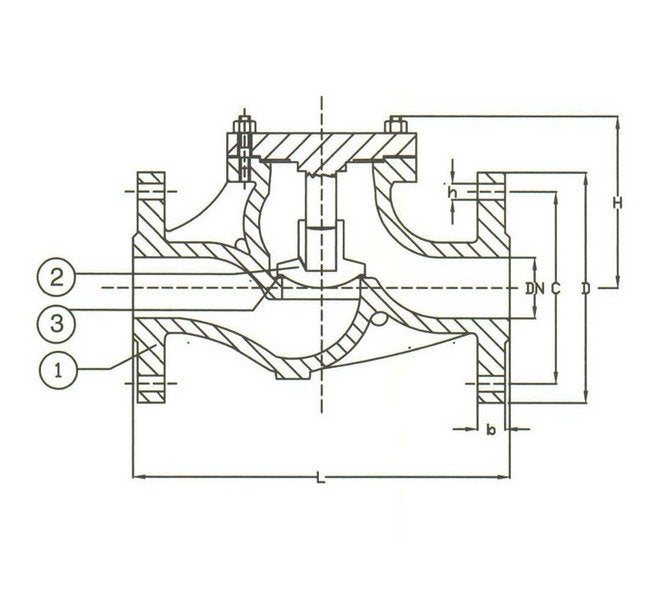

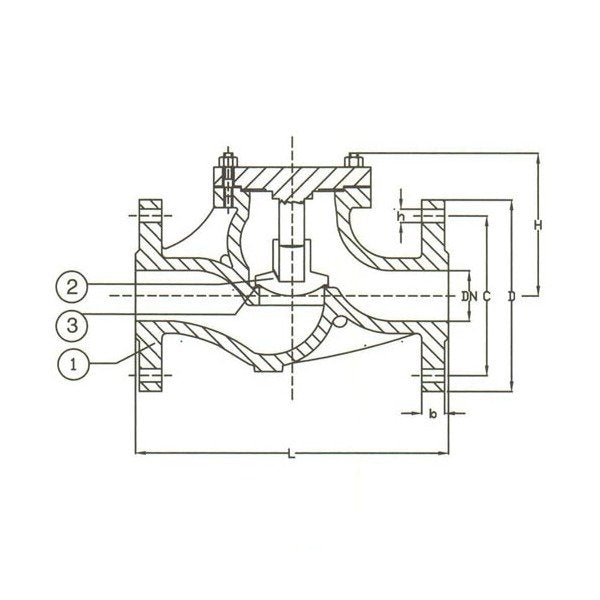

The PN 40 Cast Steel Lift Check Globe Valve combines robust construction with high-performance materials. The body is made of Cast Steel GSC-25N2, with a Stainless Steel AISI 4103 disc and seat for durability. Designed to meet DIN standards including DIN 3202-F1 face to face and DIN 2501-PN40 flanges, this valve ensures reliable operation in demanding environments. With precise dimensions and quality materials, it offers superior hydraulic performance, making it an ideal choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications Disc Material
Stainless Steel
Specifications H
120 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
290 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
065
Specifications Stem Material
Stainless Steel
Specifications T
22 in
Specifications Weight
21 kg
