Name: PN 40 Cast Steel Quick Closing Angle Valve - DIN Specialty Valve
Brand: World Wide Metric, Inc.
SKU: VAL-436c39
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-436c39

High-performance PN 40 Cast Steel Quick Closing Angle Valve for industrial use, DIN2501-PN40 compliant.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 40 Cast Steel Quick Closing Angle Valve is a robust and reliable valve designed for industrial applications. Featuring a Cast Steel body, Stainless Steel disc, seat, and stem, this valve ensures high performance and durability. With a working pressure of 40 bar and spring-loaded shut-off pressure of 2.0 bar, it guarantees efficient operation under varying conditions. Compliant with DIN2501-PN40 standards, this valve meets the strict requirements of government and institutional procurement.

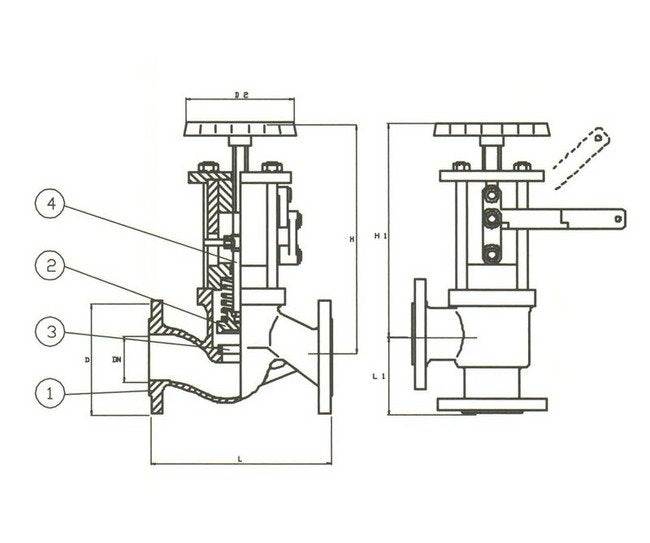

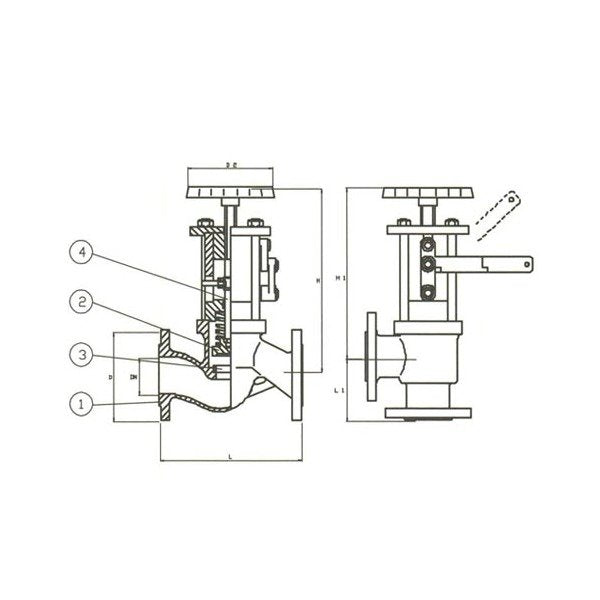

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H1

340 mm

Specifications L1

105.0 mm

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

11.0 kg

Specifications Working Pressure

40 bar
