PN 40 Cast Steel Quick Closing Angle Valve - DIN2501-PN40

Name: PN 40 Cast Steel Quick Closing Angle Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-265b41
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-265b41

Durable PN 40 Cast Steel Quick Closing Angle Valve for precision flow control in high-pressure systems. DIN2501-PN40 compliant.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 40 Cast Steel Quick Closing Angle Valve is constructed with a cast steel body and stainless steel components, ensuring durability and reliability in high-pressure applications. With a size of 150, working pressure of 40 bar, and spring-loaded shut-off pressure of 1.2 bar, this valve is designed for precision flow control. Equipped with flanges according to DIN2501-PN40 standards, it offers seamless integration into various systems. The lever actuators provide easy operation, making it ideal for industrial and institutional settings.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

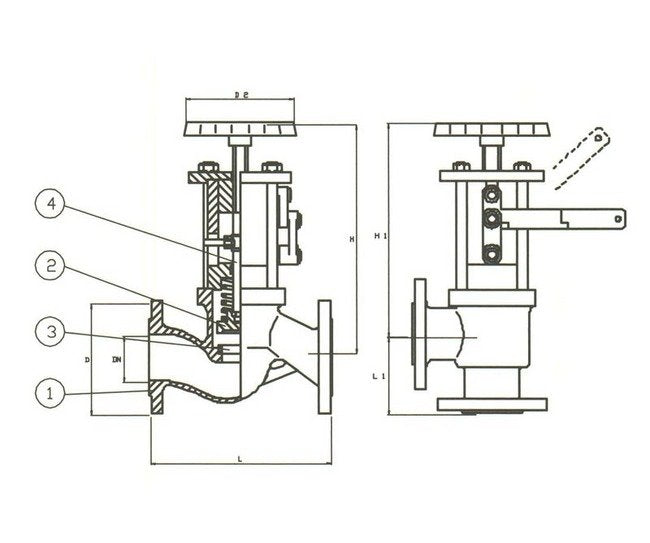

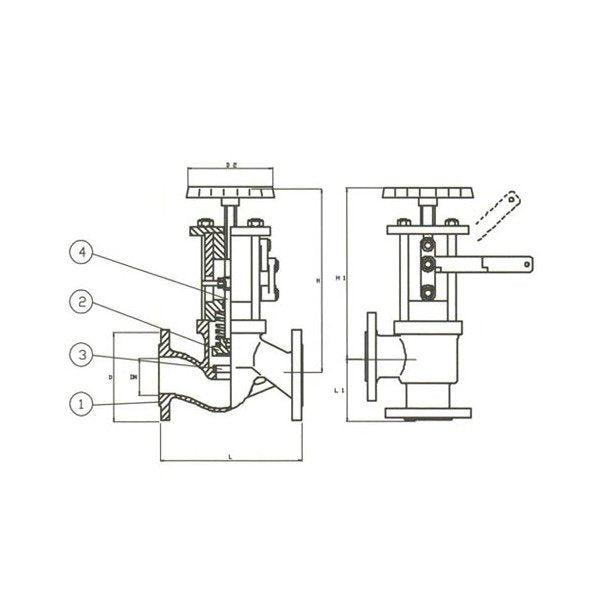

Specifications D

285 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H1

575 mm

Specifications L1

225 mm

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Spring Loaded Shut Off Pressure

1.2 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

101 kg

Specifications Working Pressure

40 bar
