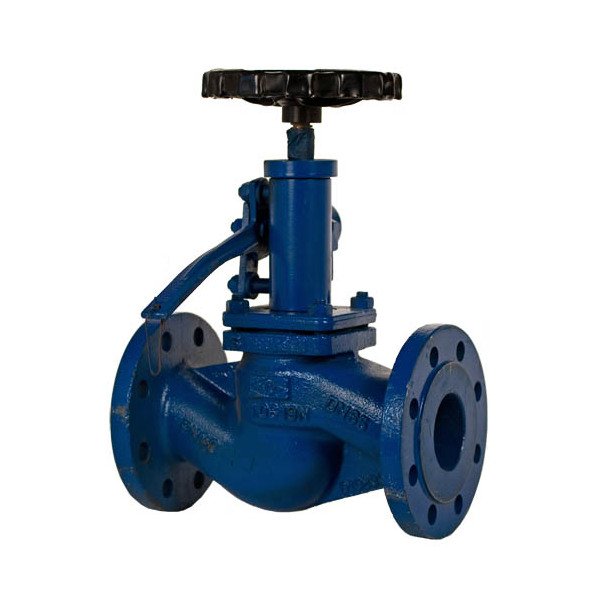

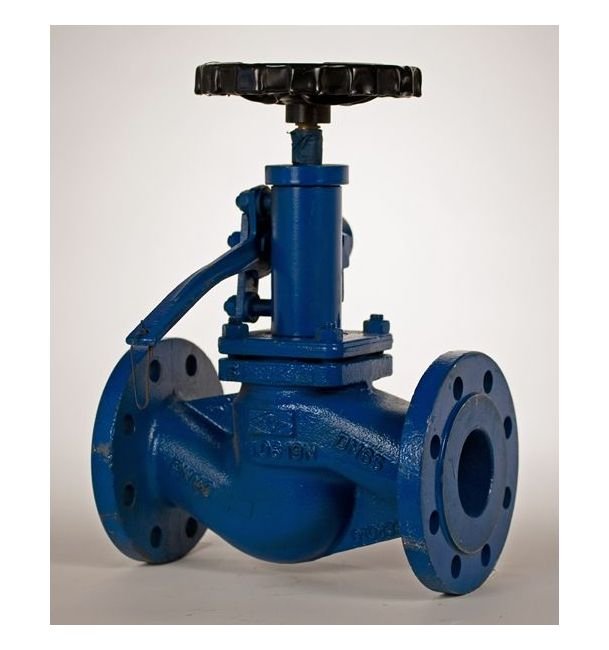

PN 40 Cast Steel Quick Closing Globe Valve 125mm
PN 40 Cast Steel Quick Closing Globe Valve 125mm
SKU:VAL-c41327
High-performance PN 40 Cast Steel Quick Closing Globe Valve for industrial fluid control. Durable, reliable, and compliant with DIN2501-PN40 standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve 125mm
$799.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve 125mm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Quick Closing Globe Valve is a robust and reliable solution for industrial fluid control. Constructed with precision-crafted cast steel body, stainless steel disc, seat, and stem, it ensures durability and optimal performance under high pressures up to 40 bar. The valve features a Spring Loaded Shut-off Pressure of 1.2 bar and comes with flanges compliant with DIN2501-PN40 standards. With a compact design and lever actuators for ease of operation, this valve is ideal for applications requiring secure shut-off capabilities.

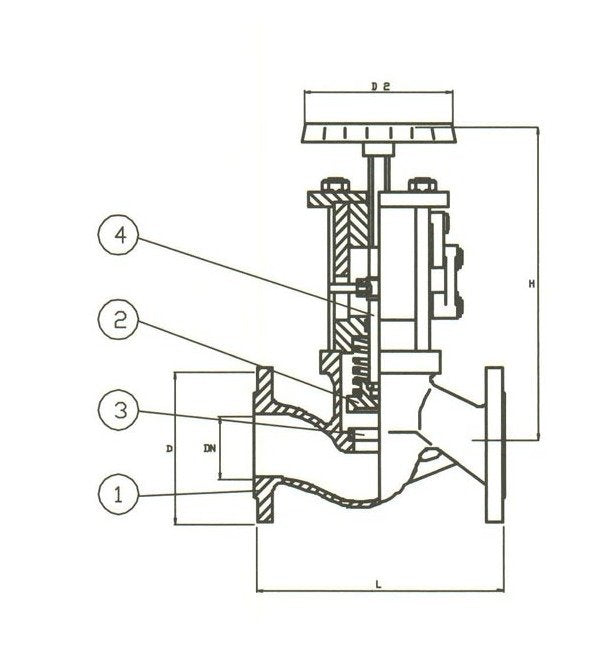

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H
585 mm
Specifications L
400 mm
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Spring Loaded Shut Off Pressure
1.2 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
71 kg
Specifications Working Pressure
40 bar
