PN 40 Cast Steel Quick Closing Globe Valve - DIN Spec
PN 40 Cast Steel Quick Closing Globe Valve - DIN Spec
SKU:VAL-2c9425
High-performance PN 40 Cast Steel Globe Valve for industrial applications. Meets DIN2501-PN40 standards.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve - DIN Spec
$199.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve - DIN Spec
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

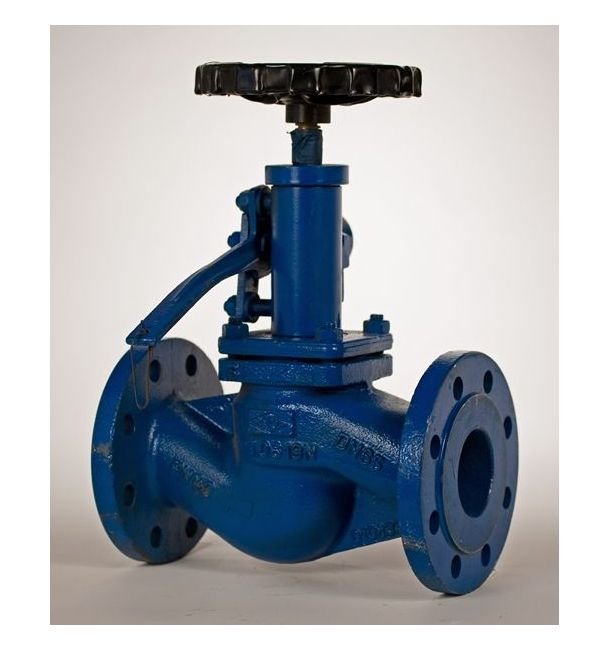

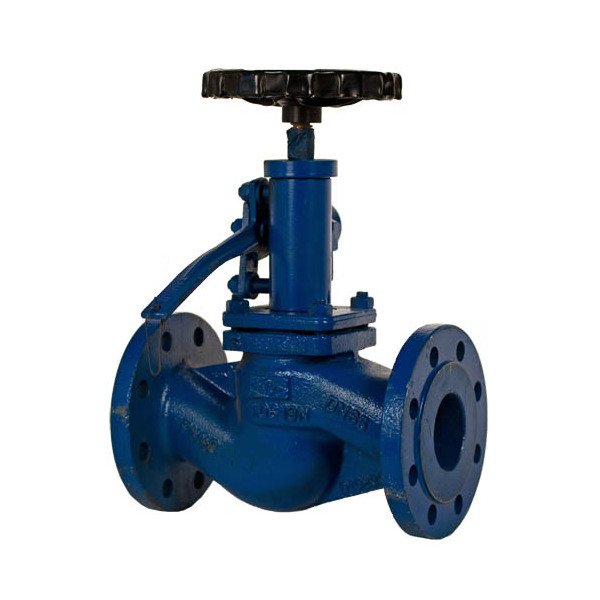

The PN 40 Cast Steel Quick Closing Globe Valve is built for precision and durability. Crafted with a Cast Steel body and Stainless Steel components, this valve ensures robust performance under high pressure. Featuring a Spring Loaded Shut-off Pressure of 2.0 bar and a Working Pressure of 40 bar, it meets stringent DIN2501-PN40 standards. Equipped with a Lever actuator and Flanged Drilled connection, this valve is a reliable choice for industrial applications requiring reliable shut-off capabilities.
Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

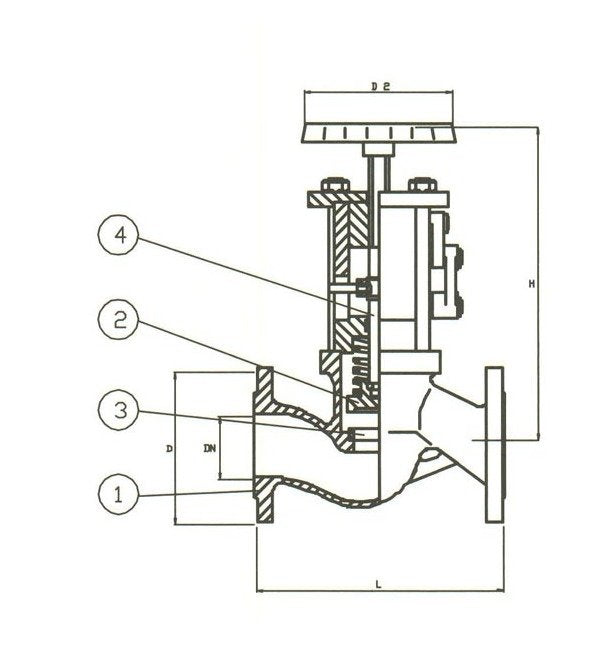

Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
230 mm
Specifications L
130 mm
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
6 kg
Specifications Working Pressure
40 bar
