PN 40 Cast Steel Quick Closing Globe Valve - DIN Specialty Valve

Name: PN 40 Cast Steel Quick Closing Globe Valve - DIN Specialty Valve
Brand: World Wide Metric, Inc.
SKU: VAL-47f328
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-47f328

High-performance PN 40 Cast Steel Globe Valve for industrial use. Robust construction, precise shut-off, and DIN2501-PN40 compliant.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

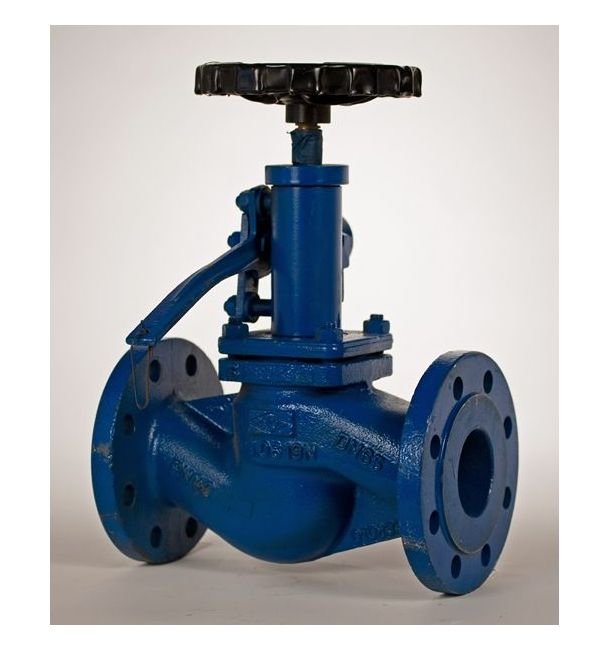

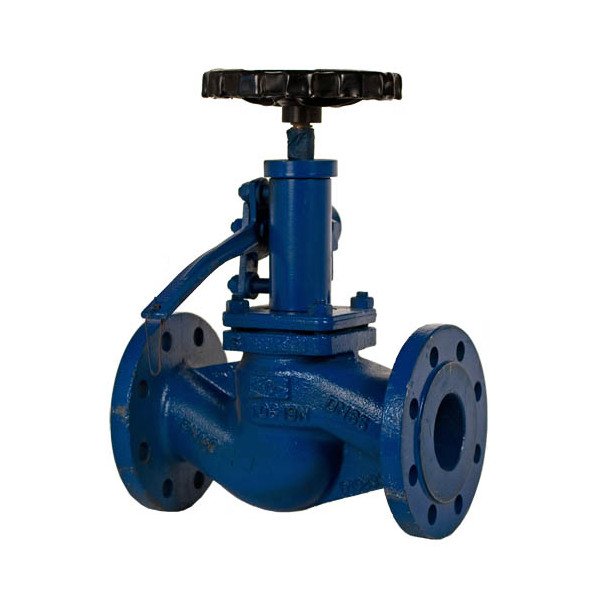

The PN 40 Cast Steel Quick Closing Globe Valve is designed for precision and durability in industrial applications. Constructed with a Cast Steel body and Stainless Steel components, including the disc and seat, this valve ensures reliable performance under high working pressures up to 40 bar. Equipped with a Spring Loaded Shut-off Pressure of 1.2 bar, it guarantees secure shut-off when needed. The lever actuator and flanged connection make installation and operation seamless, meeting DIN2501-PN40 standards.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

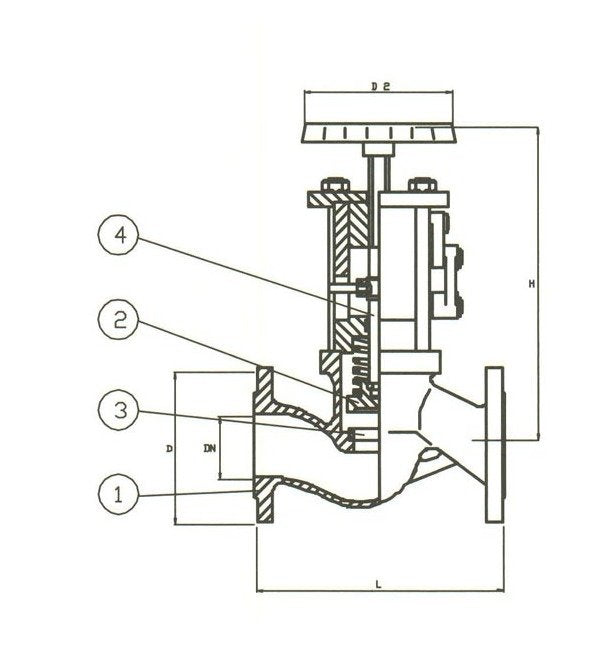

Specifications D

285 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

640 mm

Specifications L

480 mm

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Spring Loaded Shut Off Pressure

1.2 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

99 kg

Specifications Working Pressure

40 bar

PN 40 Cast Steel Quick Closing Globe Valve - DIN Specialty Valve
