PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40

Name: PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-9a4ac6
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-9a4ac6

High-quality PN 40 Cast Steel Globe Valve with DIN2501-PN40 standards. Durable, reliable, and easy to install for industrial needs.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

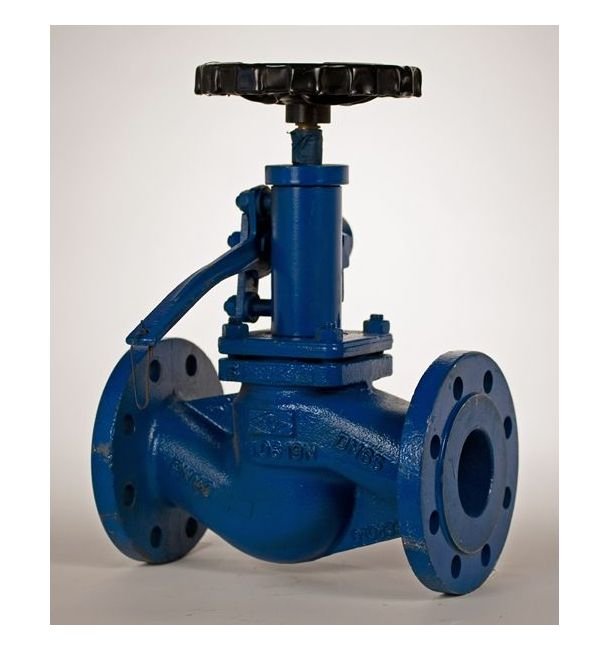

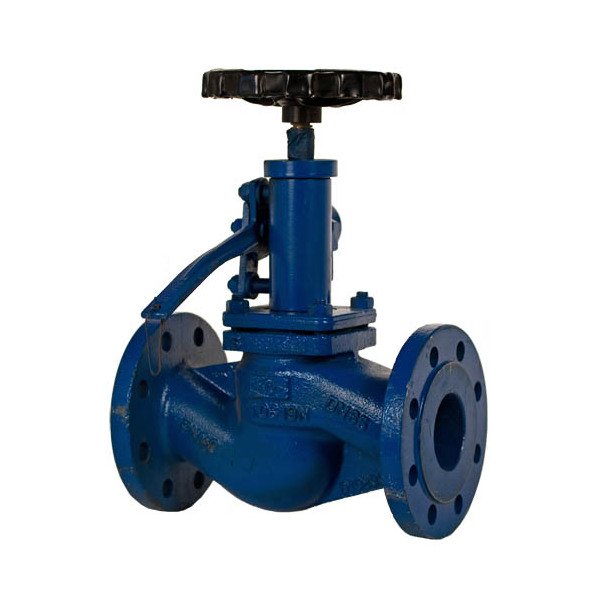

The PN 40 Cast Steel Quick Closing Globe Valve is a robust and durable valve designed for high-pressure applications. Constructed with a cast steel body, stainless steel disc, seat, and stem, this valve ensures reliable performance and longevity. With a working pressure of 40 bar and spring-loaded shut-off pressure of 2.0 bar, it meets stringent industry standards. The lever-operated valve with flanged connections according to DIN2501-PN40 provides ease of use and installation, making it ideal for industrial and institutional settings.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

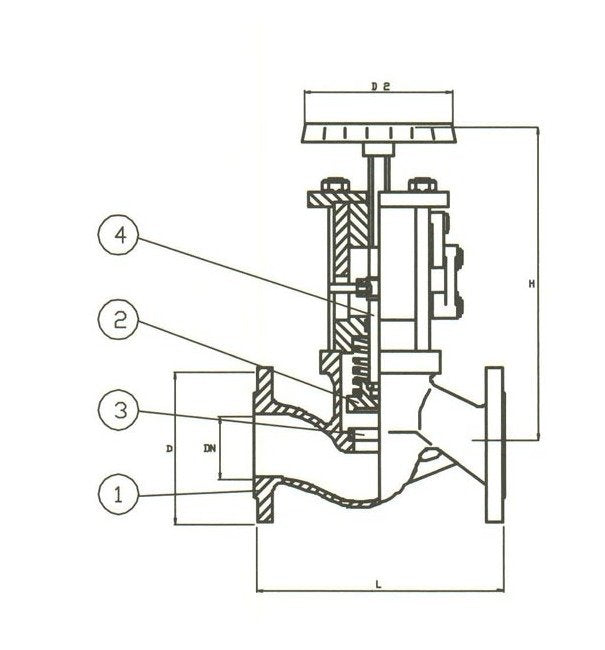

Specifications D

165 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

400 mm

Specifications L

230 mm

Specifications Seat Material

Stainless Steel

Specifications Size

050

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

19 kg

Specifications Working Pressure

40 bar

PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
