PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
SKU:VAL-b6dd34
High-performance PN 40 Cast Steel Globe Valve with DIN2501-PN40 flanges. Durable cast steel body, stainless steel components. Reliable shut-off at 40 bar.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
$499.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

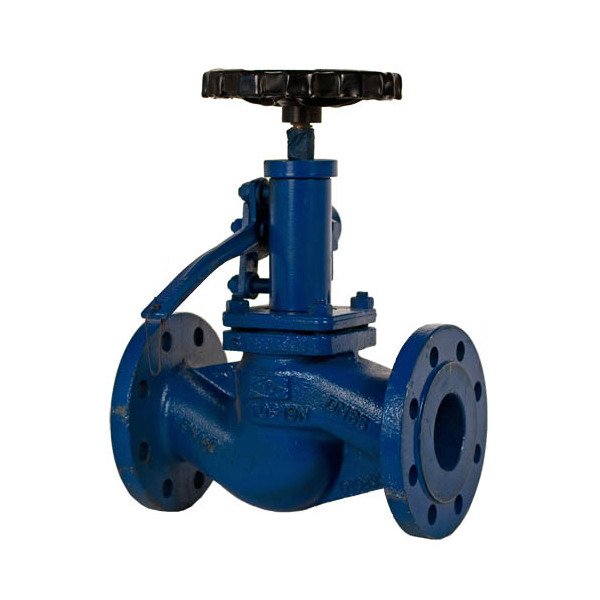

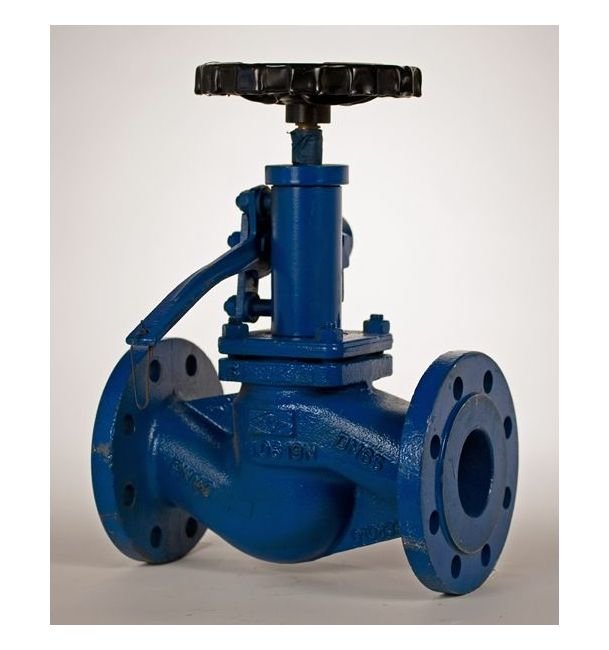

The PN 40 Cast Steel Quick Closing Globe Valve is a robust solution for industries requiring high-performance valves. Constructed with durable cast steel body, stainless steel disc, seat, and stem, this valve ensures reliable shut-off and minimal maintenance. With a working pressure of 40 bar and spring-loaded shut-off pressure of 2.0 bar, it meets stringent industry standards. The flanges are designed according to DIN2501-PN40 specifications, guaranteeing seamless integration into existing systems.
Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

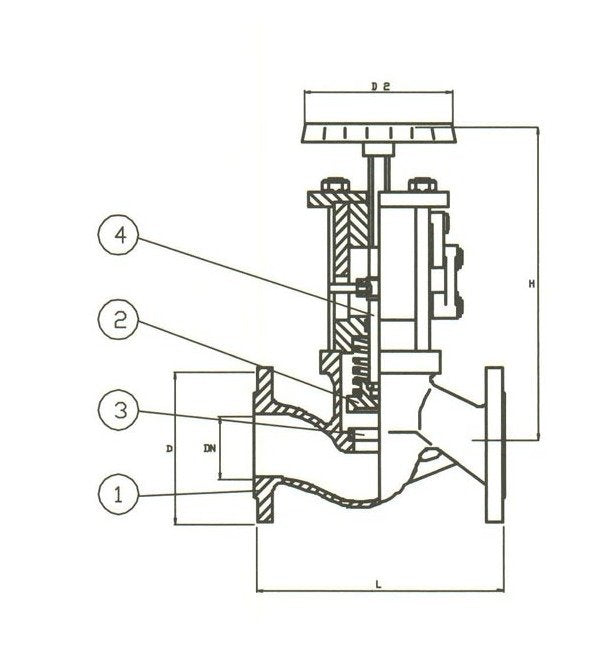

Specifications D
150 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
375 mm
Specifications L
200 mm
Specifications Seat Material
Stainless Steel
Specifications Size
040
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
14.0 kg
Specifications Working Pressure
40 bar
