PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40

Name: PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-a7afaf
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-a7afaf

High-performance PN 40 Cast Steel Quick Closing Globe Valve for industrial applications, DIN2501-PN40 compliant.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

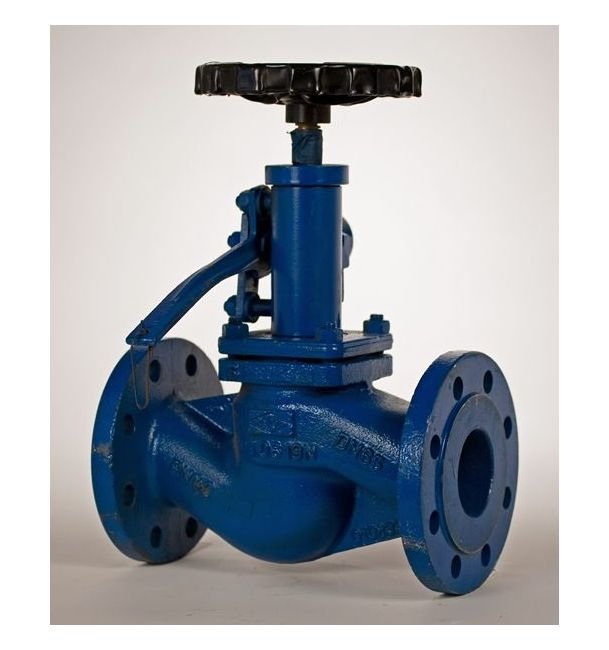

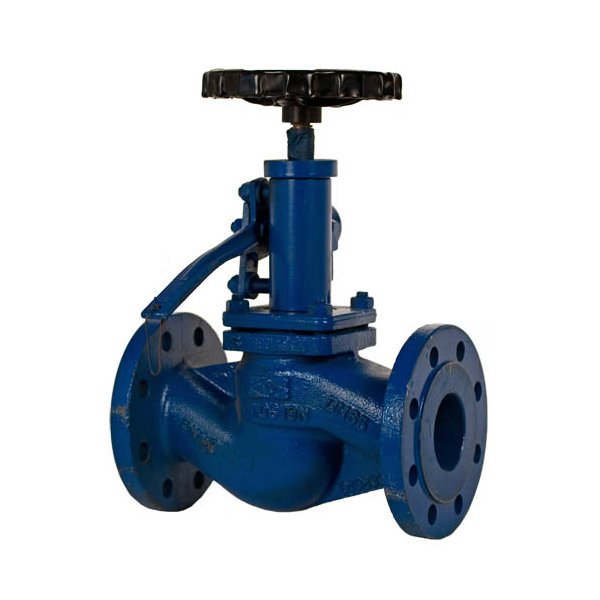

The PN 40 Cast Steel Quick Closing Globe Valve is a robust solution designed for industrial applications requiring reliable shut-off functionality. Constructed with high-quality Cast Steel body, Stainless Steel disc, seat, and stem, this valve ensures durability and long-term performance. Compliant with DIN2501-PN40 standards, it offers a Spring Loaded Shut-off Pressure of 2.0 bar and a Working Pressure of 40 bar. The lever-operated design and Flanged Drilled connection make installation and operation convenient. Meet your stringent procurement requirements with this precision-engineered valve.

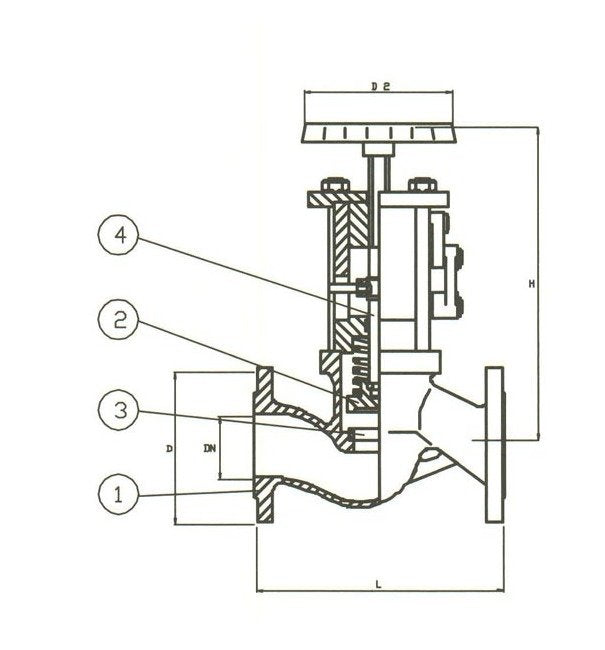

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

140 mm

Specifications Disc Material

Stainless Steel

Specifications H

475 mm

Specifications L

310 mm

Specifications Seat Material

Stainless Steel

Specifications Size

080

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

34.00 kg

Specifications Working Pressure

40 bar

PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
