PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40

Name: PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-63cf82
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-63cf82

Premium PN 40 Cast Steel Globe Valve with Stainless Steel components for high-pressure applications. DIN2501-PN40 compliant.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

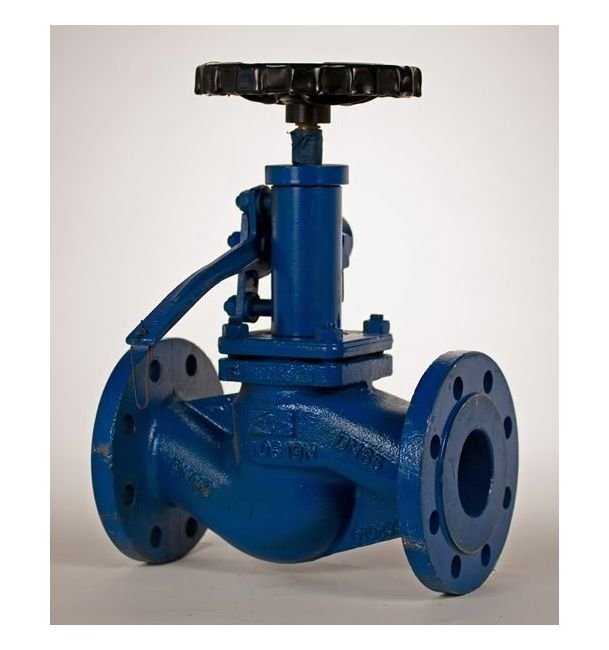

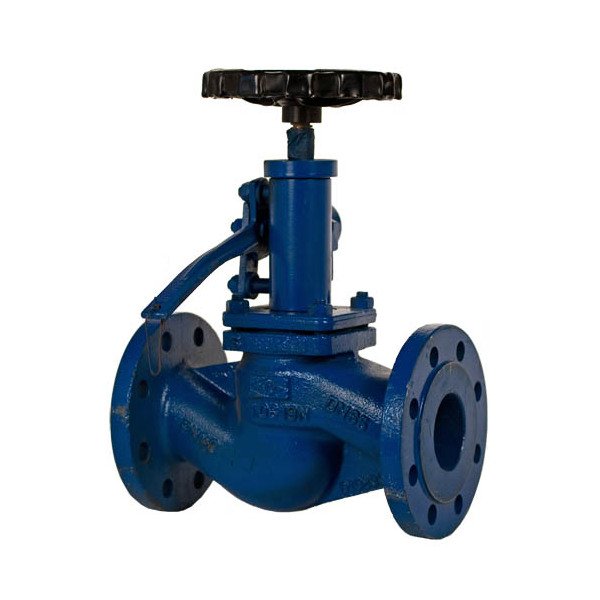

The PN 40 Cast Steel Quick Closing Globe Valve is engineered for superior performance and durability. Crafted with a Cast Steel body and Stainless Steel components (disc, seat, and stem), it ensures reliability even under high pressures of up to 40 bar. The spring-loaded shut-off pressure at 2.0 bar enhances safety. Lever-operated for ease of use and featuring flanged connections per DIN2501-PN40 standards, this valve is ideal for industrial applications requiring precision control and secure shut-off.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

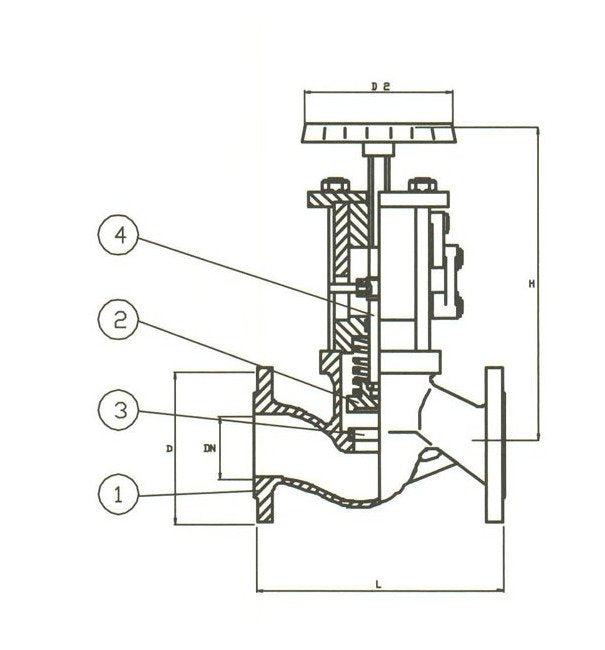

Specifications D

140 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

355 mm

Specifications L

180 mm

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

11.0 kg

Specifications Working Pressure

40 bar
