PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40 Compliant
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40 Compliant
SKU:VAL-782d85
Premium PN 40 Cast Steel Globe Valve, DIN2501-PN40 compliant. Durable, reliable, and efficient.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40 Compliant
$199.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve - DIN2501-PN40 Compliant
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

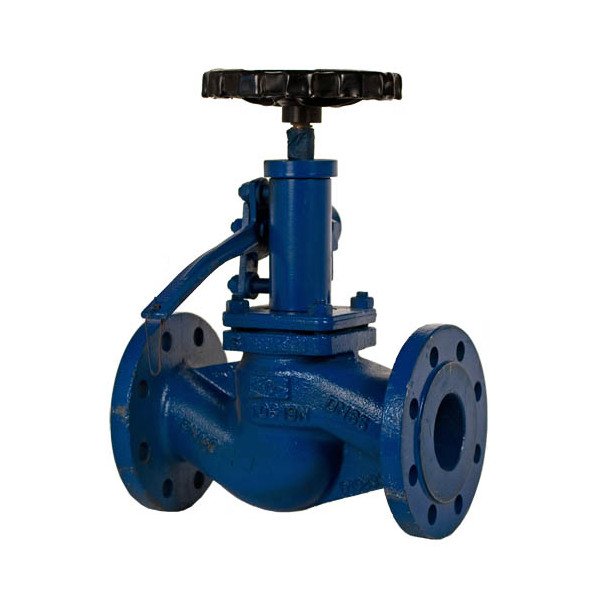

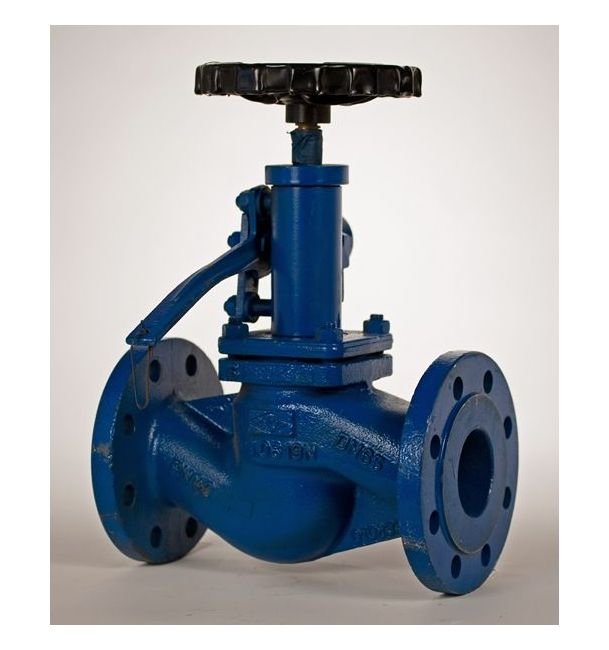

The PN 40 Cast Steel Quick Closing Globe Valve is crafted with precision using Cast Steel for the body, Stainless Steel for the disc, seat, and stem, ensuring durability and longevity in demanding industrial environments. With a Spring Loaded Shut-off Pressure of 2.0 bar and a Working Pressure of 40 bar, this valve guarantees reliable performance under high-pressure conditions. Equipped with lever actuators and flanged connection according to DIN2501-PN40 standards, this valve is ideal for applications requiring quick and efficient shut-off capabilities.

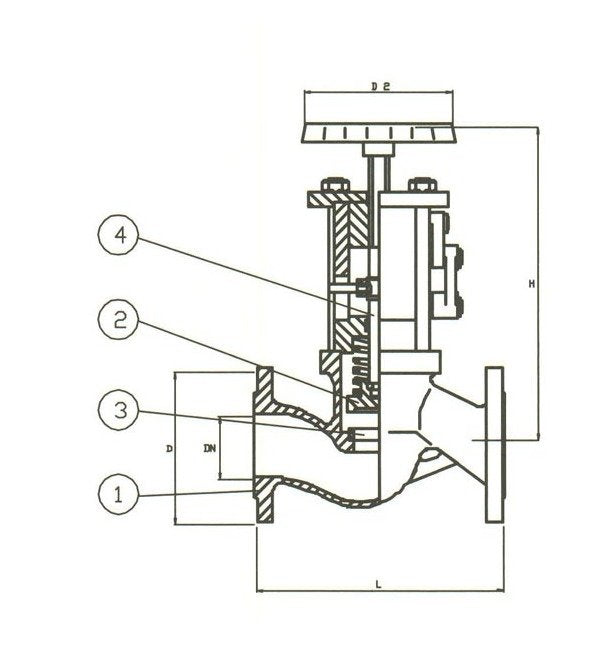

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
300 mm
Specifications L
150 mm
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
7.0 kg
Specifications Working Pressure
40 bar
