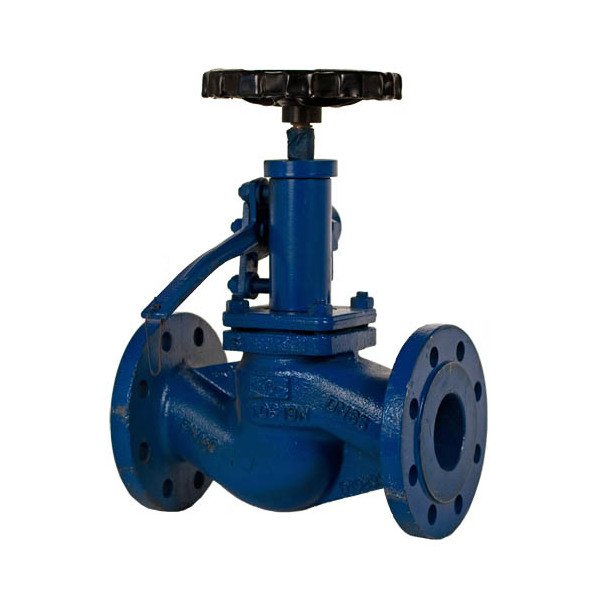

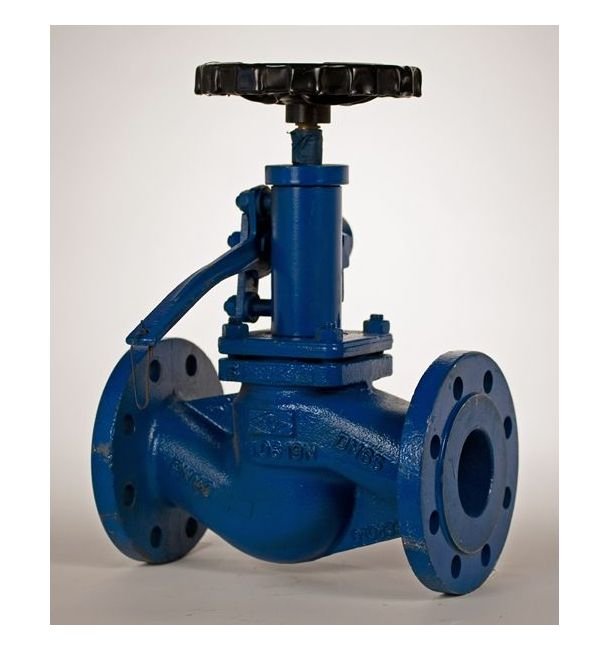

PN 40 Cast Steel Quick Closing Globe Valve with DIN2501-PN40 Flanges
PN 40 Cast Steel Quick Closing Globe Valve with DIN2501-PN40 Flanges
SKU:VAL-3bd24c
High-performance PN 40 Cast Steel Globe Valve with DIN2501-PN40 Flanges, ideal for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve with DIN2501-PN40 Flanges
$249.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve with DIN2501-PN40 Flanges
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Quick Closing Globe Valve is designed for robust performance in industrial settings. Constructed with a Cast Steel body, Stainless Steel disc, seat, and stem, this valve ensures durability and corrosion resistance. With a working pressure of 40 bar and spring-loaded shut-off pressure of 2.0 bar, it guarantees reliable operation under high-pressure conditions. The lever actuators and flanged connection allow for easy installation and control. Compliant with DIN2501-PN40 standards, this valve meets the stringent requirements of institutional and government procurement.

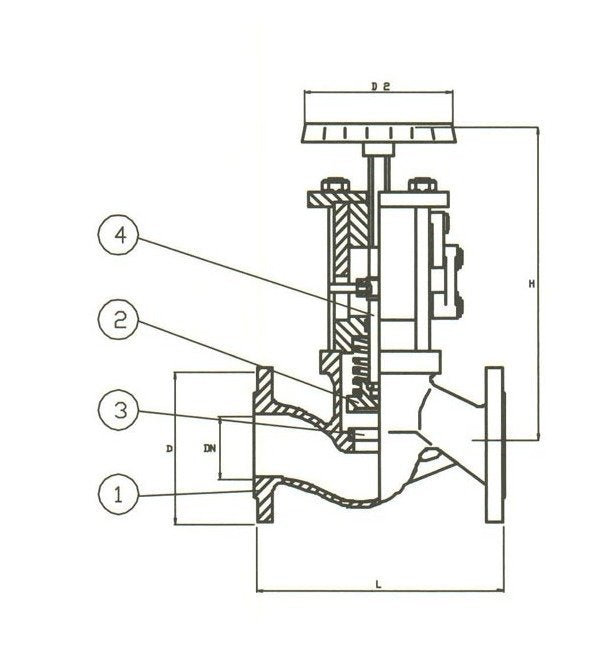

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
335 mm
Specifications L
160 mm
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
8.0 kg
Specifications Working Pressure
40 bar
