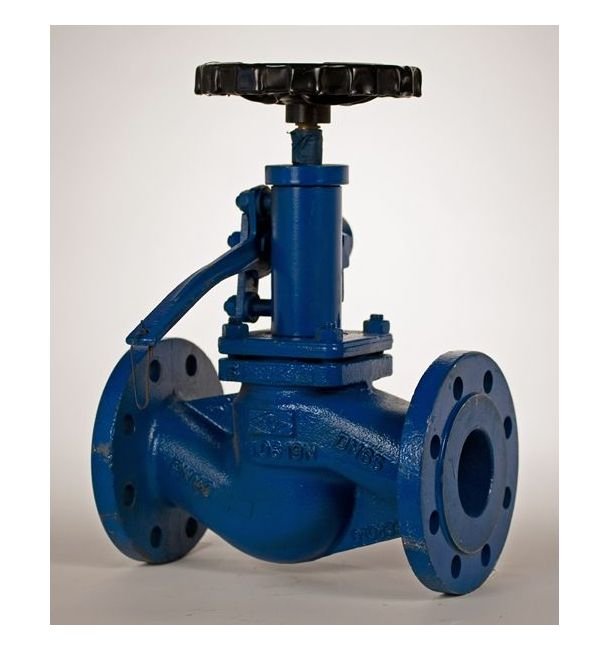

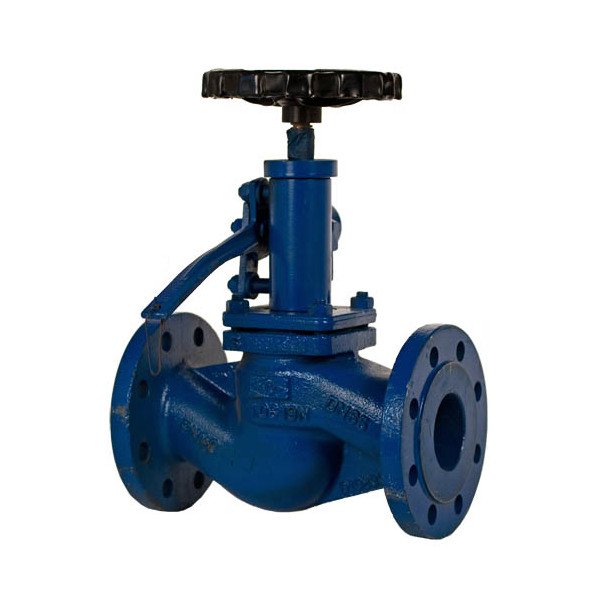

PN 40 Cast Steel Quick Closing Globe Valve with Stainless Steel Disc and Seat
PN 40 Cast Steel Quick Closing Globe Valve with Stainless Steel Disc and Seat
SKU:VAL-755d36
Durable PN 40 Cast Steel Globe Valve with Stainless Steel Parts, Ideal for Industrial Applications
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PN 40 Cast Steel Quick Closing Globe Valve with Stainless Steel Disc and Seat
$399.99
Quantity: 1
Claim Your Seller Account
PN 40 Cast Steel Quick Closing Globe Valve with Stainless Steel Disc and Seat
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Quick Closing Globe Valve is a reliable solution for industrial applications requiring a spring-loaded shut-off pressure of 1.2 bar and a working pressure of 40 bar. Crafted with precision, this valve features a cast steel body, stainless steel disc, seat, and stem, ensuring durability and optimal performance. With flanges according to DIN2501-PN40 standards, this valve offers secure connections and efficient operation, making it ideal for a wide range of industrial settings.
Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

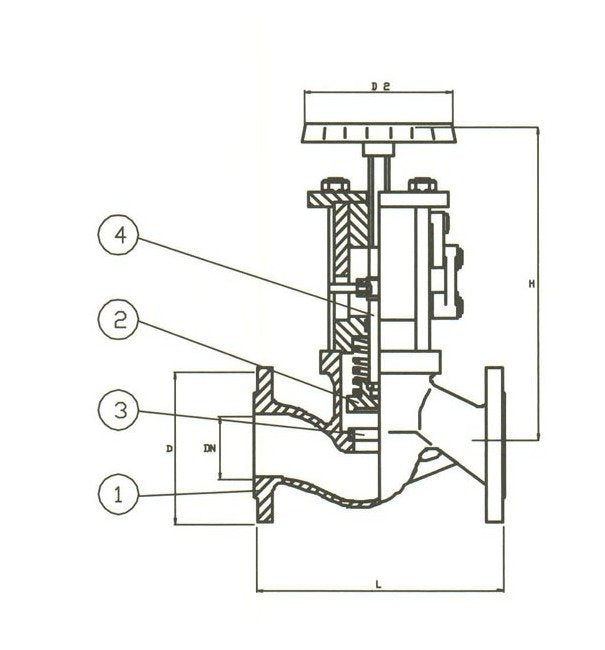

Specifications D
220 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H
525 mm
Specifications L
350 mm
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Spring Loaded Shut Off Pressure
1.2 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
49 kg
Specifications Working Pressure
40 bar
