PN 40 Quick Closing Cast Steel Angle Valve - DIN2501-PN40

Name: PN 40 Quick Closing Cast Steel Angle Valve - DIN2501-PN40
Brand: World Wide Metric, Inc.
SKU: VAL-8d3fde
Price: 159.99 USD
Availability: OutOfStock

SKU:VAL-8d3fde

Durable PN 40 Cast Steel Quick Closing Angle Valve for high-pressure applications, DIN2501-PN40 compliant.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 40 Cast Steel Quick Closing Angle Valve is expertly engineered to meet the stringent requirements of industrial applications. Constructed with precision using high-quality materials like Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures durability and reliable performance. With a spring-loaded shut-off pressure of 2.0 bar and a working pressure of 40 bar, it guarantees optimum functionality under high-pressure conditions. The valve's compact design, flanged connection, and lever actuator make installation and operation efficient and user-friendly, catering to the precise needs of both consumer and institutional buyers.

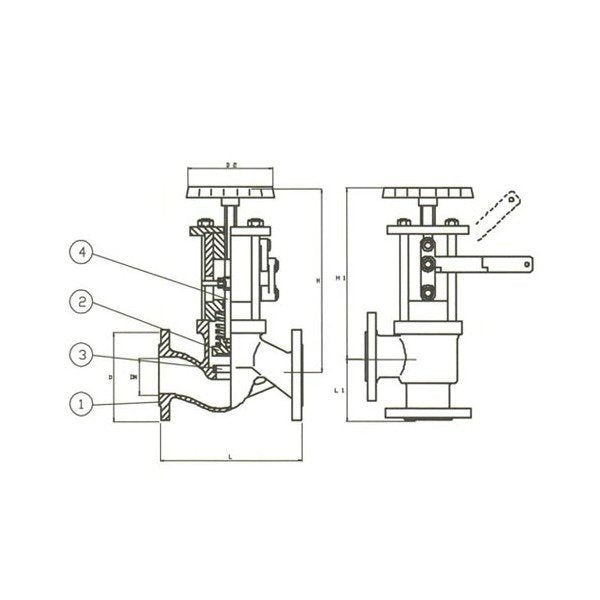

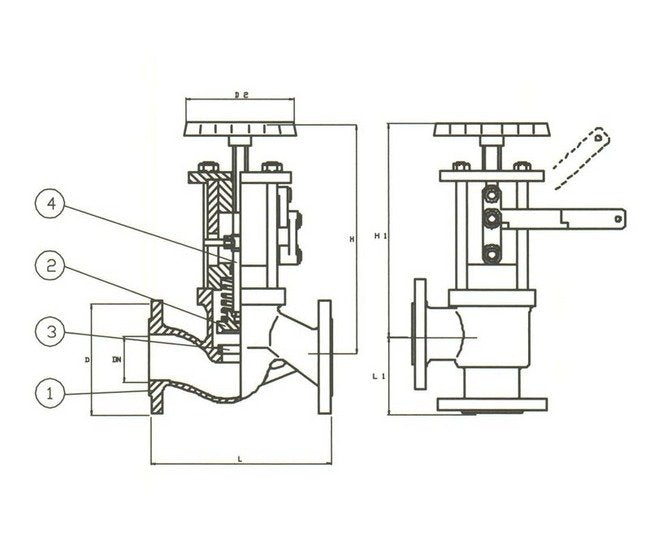

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H1

200 mm

Specifications L1

90 mm

Specifications Seat Material

Stainless Steel

Specifications Size

015

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

6 kg

Specifications Working Pressure

40 bar

PN 40 Quick Closing Cast Steel Angle Valve - DIN2501-PN40
