PN10 Stainless Steel Blind Flange DIN

Name: PN10 Stainless Steel Blind Flange DIN
Brand: World Wide Metric, Inc.
SKU: FLA-72c30c
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-72c30c

High-quality PN10 Stainless Steel Blind Flange DIN for reliable pipeline sealing. DIN PN 10 pressure rating, stainless steel construction, secure bolt installation.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

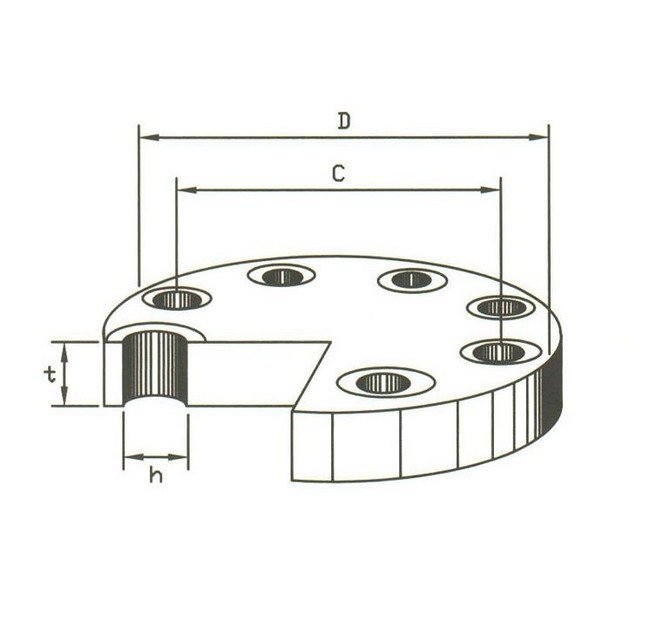

The PN10 Stainless Steel Blind Flange DIN offers durable construction and precise engineering to ensure reliable sealing in pipelines. With a size range of 080 - 3" and DIN PN 10 pressure rating, this blind flange is suitable for a variety of industrial applications. Crafted from high-quality stainless steel, it features dimensions of d: 90.3 mm, D: 200 mm, C: 160 mm, and a weight of 3.5 kg. The flange includes four bolts for secure installation, with h: 18 mm and t: 20 mm ensuring stability. Trust in this blind flange for dependable performance and easy maintenance, meeting stringent industry standards.

Product Specifications

Specifications C

160 mm

Specifications D

200 mm

Specifications H

18 mm

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

DIN PN 10

Specifications Size

080 - 3"

Specifications T

20 mm

Specifications Weight

3.5 kg
