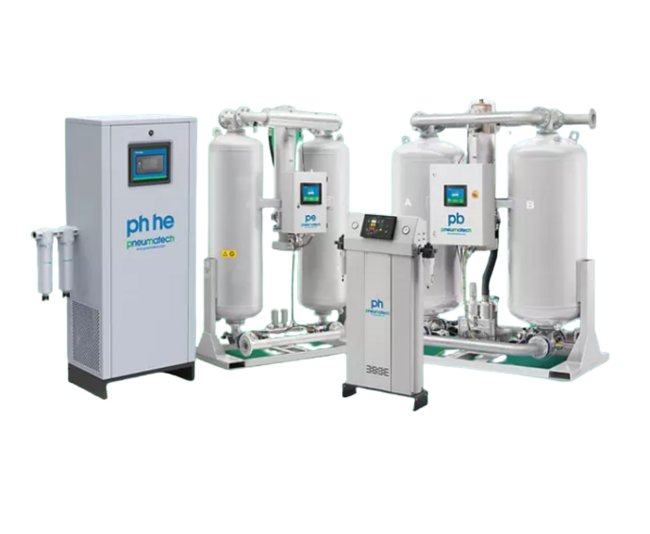

Pneumatech Adsorption Dryers
Pneumatech Adsorption Dryers
SKU:OEM-c54e78
Efficiently protect equipment from humidity with Pneumatech Adsorption Dryers. Advanced energy management, low operating costs, and guaranteed dry air for critical applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Pneumatech Adsorption Dryers
$2,499.99
Quantity: 1
Claim Your Seller Account
Pneumatech Adsorption Dryers
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure efficient protection against humidity with Pneumatech Adsorption Dryers. These innovative desiccant dryers provide stable performance, optimal control, and monitoring for guaranteed dry air. Featuring advanced energy management, low operating costs, and high efficiency, they are recommended for achieving pressure dew points from -10°C to -70°C. Built with two drying vessels for continuous operation, these dryers are ideal for critical applications and environments below 5°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Pneumatech adsorption dryers consist of two towers, both filled with desiccant, which alternatively operate in adsorption or regeneration cycle via a controlled switching mechanism. Once the desiccant is saturated in one vessel the process is reversed, and the second vessel starts adsorbing.Adsorption dryers are used when PDPs (pressure dew points) from -10 ºC/14 ºF down to -70 ºC/-94 ºF are to be achieved. They make use of a material which has a high affinity to attract moisture, so called hygroscopic material or desiccant. The adsorption of moisture causes the desiccant to be gradually saturated with water.Therefore, the desiccant needs to be regenerated regularly to regain its drying capacity. Adsorption dryers are typically built with two drying vessels ("towers") for that purpose: the first tower will dry the incoming compressed air while the second one is being regenerated. To ensure continuity, each vessel switches tasks when the other one is completely regenerated. For critical applications and applications below 5 ºC/ 41 ºF ambient temperature, an adsorption dryer is recommended.
Benefits Benefits
Advanced energy managementLowest operating costsStable performance over the entire lifetimeOptimal control and monitoringGuaranteed dry airHigh-efficient desiccantLowest operating costsStable performance over the entire lifetimeGuaranteed dry airLow maintenance costs
Specifications Dryer Type
Desiccant
