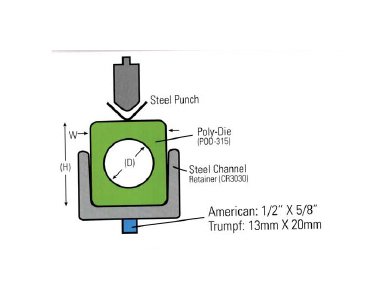

The POD-315 Press Brake Poly-Dies are precision-engineered to meet the demanding requirements of V-bend metal forming. With a pad width and height of 3.0 inches, these poly-dies feature a hole diameter of 1.50 inches and can handle up to 12 gauges for 90° bends. The molded hole design provides stress relief, reducing tonnage needs. Compliant with ASTM Steel C-Channels, these square or rectangular pads are ideal for sharp or radiused V-bends, ensuring consistent and accurate results for your bending applications.
Product Specifications
Specifications Gauge Cap For 90 V
12 ga
Specifications Hole Diameter
1.50 in
Specifications Number Of Forming Surfaces
4
Specifications Pad Height
3.0 in
Specifications Pad Width
3.0 in
Specifications Pods For Radius V Bends
A molded hole through the full length of the pad provide for stress relief and require lower tonnage. | PODs are designed to fit in standard ASTM Steel C-Channels, to function as holders or Retainers. | PODs are square or Rectangular shaped Pads, with a Flat top. Designed for bending sharp or radiused V-bends.
Specifications Retainer Part Number
CR3030
Specifications Size For 90 Radius
5/8 in
