Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge - Polypropylene
Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge - Polypropylene
SKU:PRO-ff8bd6
Reliable 1.5" Poly Ball Valve Diaphragm Pump for intermittent fluid handling. Polypropylene construction with ball check valve type. Max. Flow Rate: 100 gpm.
Regular price
$1,150.99
Regular price
Sale price
$1,150.99
Unit price
per
Initiate Order
Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge - Polypropylene
$1,150.99
Quantity: 1
Claim Your Seller Account
Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge - Polypropylene
$1,150.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/2" Standard Duty S15 Top Discharge Poly Ball Valve Pump is a reliable choice for intermittent fluid handling. Constructed with Polypropylene, this non-metallic pump features a ball check valve type ideal for moderately abrasive fluids. With a Max. Flow Rate of 100 gpm, this pump is suitable for diverse applications. Recommended Accessories available separately for enhanced performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

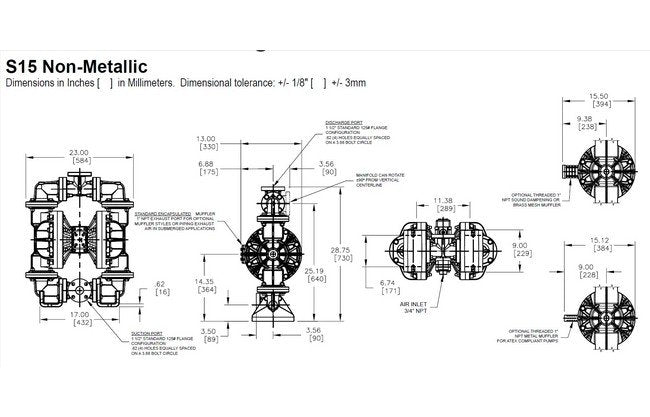

Dimensions 0
Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3PCPPUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg | 37.19 Kilogram
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
