Poly-Dies PUD-312 Press Brake Poly-Dies

Name: Poly-Dies PUD-312 Press Brake Poly-Dies
Brand: Polyurethane Products Corp.
SKU: PRE-69763d
Price: 249.99 USD
Availability: OutOfStock

SKU:PRE-69763d

Upgrade your press brake with precision-engineered PUD-312 Poly-Dies for efficient bending and forming processes.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your press brake operations with the PUD-312 Press Brake Poly-Dies. With a pad width and height of 3.0 inches, hole diameter of 1.25 inches, and capable of 180-degree U-Bends in one hit, these poly-dies are designed to meet the demanding needs of industrial applications. The PUDs are compatible with standard ASTM Steel C-Channels, ensuring seamless integration into your workflow. Crafted for precision and durability, these poly-dies enable efficient bending and forming processes for a variety of materials up to 16 gauge thickness. Upgrade to PUD-312 for reliable performance and exceptional results.

Product Specifications

Specifications Gauge Cap For 90 V

16 ga

Specifications Hole Diameter

1.25 in

Specifications Number Of Forming Surfaces

Specifications Pad Height

3.0 in

Specifications Pad Width

3.0 in

Specifications Puds For Radius U Bends

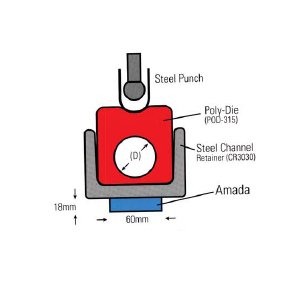

PUDs are designed to fit in standard ASTM Steel C-Channels, to function as holders or Retainers | PUDs are square or Rectangular shaped Pads with a molded U-Shaped top surface to enable 180 degrees U-Bends in one hit.

Specifications Retainer Part Number

CR3030

Specifications Size For 90 Radius

1/2 in

Poly-Dies PUD-312 Press Brake Poly-Dies
