Polyethylene Flanged Plastic Cap for 7/8” Straight Threads
Polyethylene Flanged Plastic Cap for 7/8” Straight Threads
SKU:FLA-8d60f9
Durable polyethylene caps for 7/8” straight threads, providing visual verification and easy installation for effective thread protection.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Polyethylene Flanged Plastic Cap for 7/8” Straight Threads
$49.99
Quantity: 1
Claim Your Seller Account
Polyethylene Flanged Plastic Cap for 7/8” Straight Threads
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

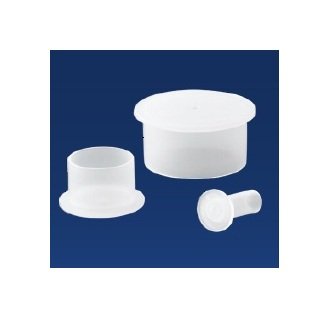

The MOCAP FCS Series flanged plastic caps are expertly crafted from durable polyethylene to safeguard standard 7/8” straight threads effectively. With a natural color for easy visual inspection of threads and o-ring, these caps offer optimal protection. Easy to install manually or with automated equipment, the flanged design enables hassle-free removal. Available in various sizes to accommodate different straight thread dimensions, these caps are versatile and reliable for thread protection and sealing applications.
Product Specifications
Features 0

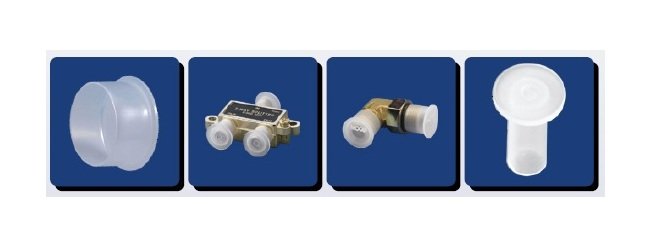

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings
Manufacturing Notes 0
MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
4300

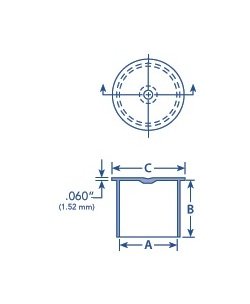

Specifications Flange Outer Diameter Dimension C
1.120 in | 28.4 mm
Specifications Flange Thickness
0.060 in | 1.52 mm
Specifications Inside Diameter Dimension A
0.864 in | 21.9 mm
Specifications Inside Length Dimension B
0.660 in | 16.8 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
86
Specifications Mini Pack Quantity
860
Specifications Standards
RoHS Compliant
Specifications To Fit Standard Thread Size
7/8 in
