Polyethylene Wide Flange Tapered Plug Cap
Polyethylene Wide Flange Tapered Plug Cap
SKU:WID-229840
Versatile Polyethylene Plug Cap for secure sealing. Heat-resistant up to 175°F. Ideal for painting and industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Polyethylene Wide Flange Tapered Plug Cap
$49.99
Quantity: 1
Claim Your Seller Account
Polyethylene Wide Flange Tapered Plug Cap
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

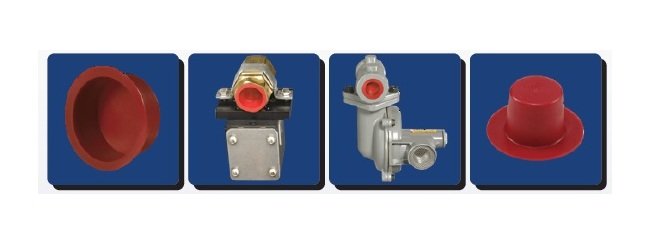

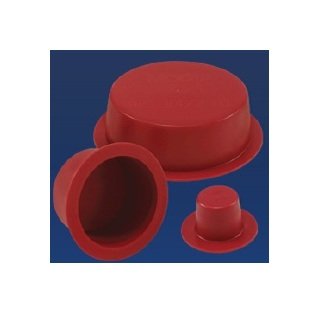

The Polyethylene Wide Flange Tapered Plug Cap by MOCAP is a versatile solution for sealing a variety of openings, including threaded and non-threaded holes, pipe and tube ends, connector ports, and fittings. Crafted from durable polyethylene material, these caps offer heat resistance up to 175°F (80°C) making them ideal for painting, coating, and spraying processes. With precise dimensions for a secure fit, these caps can be used as masking caps or plugs, ensuring efficient protection. MOCAP's wide flange design provides added stability and ease of handling, meeting the demands of industrial applications.
Product Specifications
Applications 0

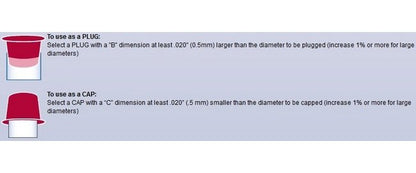

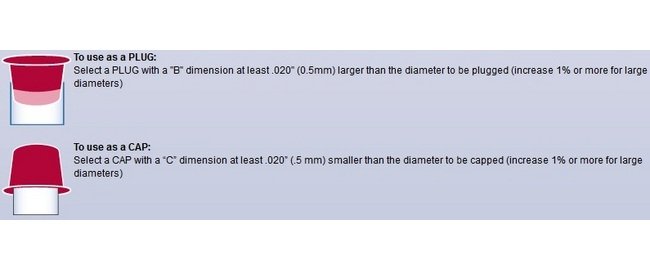

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 in (0.5 mm) smaller than the diameter to be capped (increase 1% or more for large diameters)
Manufacturing Notes 0
MOCAP stocks wide flange tapered plastic plug caps in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
2000

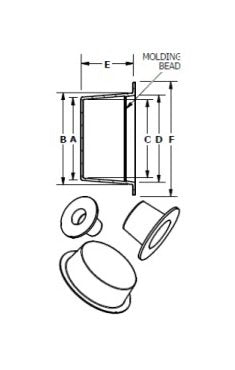

Specifications Flange Outer Diameter Dimension F
2.26 in | 57.4 mm
Specifications Large End Inside Diameter Dimension D
1.514 in | 38.5 mm
Specifications Large End Outer Diameter Dimension B
1.600 in | 40.6 mm
Specifications Length Dimension E
0.49 in | 12.4 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
40
Specifications Mini Pack Quantity
400
Specifications Small End Inside Diameter Dimension C
1.432 in | 36.4 mm
Specifications Small End Outer Diameter Dimension A
1.517 in | 38.5 mm
Specifications Standards
RoHS Compliant
