Polyethylene Wide Flange Tapered Plug Cap
Polyethylene Wide Flange Tapered Plug Cap
SKU:WID-b49fa3
Versatile Polyethylene plug cap for threaded holes & connector ports, RoHS compliant, temp resistant up to 175°F, precise dimensions, immediate availability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Polyethylene Wide Flange Tapered Plug Cap
$49.99
Quantity: 1
Claim Your Seller Account
Polyethylene Wide Flange Tapered Plug Cap
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

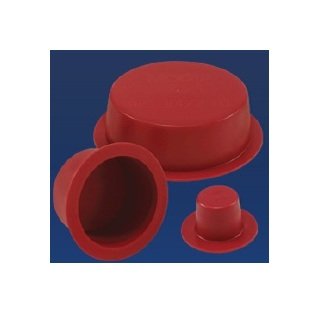

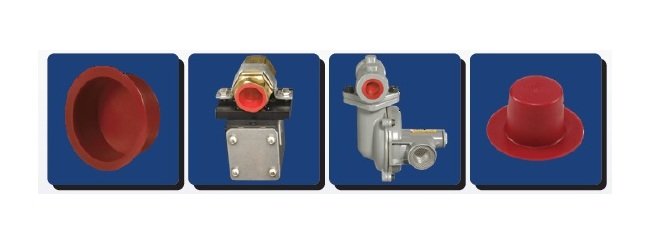

The Polyethylene Wide Flange Tapered Plug Cap by MOCAP is a versatile solution for closing various openings, from threaded holes to connector ports. Made from RoHS-compliant polyethylene, this plug cap is suitable for temperatures up to 175°F. With precise dimensions and a flange outer diameter of 1.03 inches, this cap ensures a secure fit. MOCAP's commitment to quality manufacturing guarantees immediate availability in various pack sizes to meet your needs.
Product Specifications
Applications 0

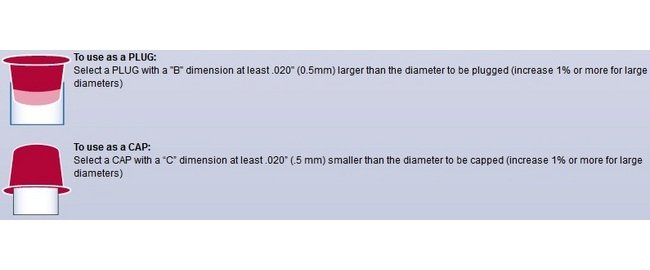

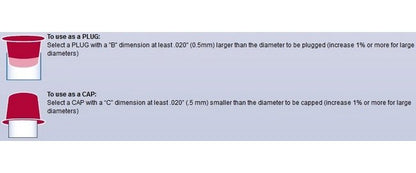

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 in (0.5 mm) smaller than the diameter to be capped (increase 1% or more for large diameters)
Manufacturing Notes 0
MOCAP stocks wide flange tapered plastic plug caps in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
5000

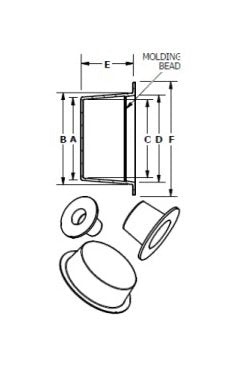

Specifications Flange Outer Diameter Dimension F
1.03 in | 26.2 mm
Specifications Large End Inside Diameter Dimension D
0.662 in | 16.8 mm
Specifications Large End Outer Diameter Dimension B
0.726 in | 18.4 mm
Specifications Length Dimension E
0.50 in | 12.7 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Inside Diameter Dimension C
0.581 in | 14.8 mm
Specifications Small End Outer Diameter Dimension A
0.643 in | 16.3 mm
Specifications Standards
RoHS Compliant
