The Polyflow® Absolute Rated Depth Cartridges offer superior dirt-holding capacity and absolute particle retention, meeting stringent filtration requirements for institutional and government buyers. Engineered with polypropylene depth media and an exclusive calendaring process, these cartridges ensure high retention efficiencies and minimal lot-to-lot variability. With compatibility under harsh conditions, steam sterilization capability, and a structure designed for long service life, these cartridges are ideal for general water filtration, beverage clarification, RO/DI prefilters, and wastewater applications.
Product Specifications
Applications 0
General water filtrationBeverage/wine clarificationRO/DI prefiltrationWaste water
Benefits 0
Low extractablesAbsolute particle retention provides excellent protection for downstream filtersBroad chemical compatibility allows use in most applicationsHigh flow rate, long service life reduces processing time
Materials Of Construction Depth Media Material
Polypropylene
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notificationPolyflow® is a registered trademark of Parker Hannifin Corporation.Viton® is registered trademark of E.I. DuPont de Nemours & Co., Inc.Cuno® is a registered trademark of Cuno Inc.
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
4.9 ft² | 0.46 m²
Specifications Effective Filtration Area Per 5 Inch 130 Mm Cartr
2.4 ft² | 0.22 m²
Specifications End Fittings
120/Internal/Recessed Endcap
Specifications Filter Rating
0.6 µm | 1.2 µm | 2.5 µm | 5.0 µm | 10.0 µm | 20.0 µm | 40.0 µm
Specifications Filtration Cleanliness
Cartridge extractables NVR < 35 mg per 10 inch (250 mm) cartridge
Specifications Filtration Ratings
The 0.6 µm offers typical retention up to 99% efficiency. 1.2 µm, 2.5 µm, 5 µm, 10µm, 20 µm, and 40 µm are up to 99.9% efficient at specified pore size
Specifications Gasketo Ring Material
Buna N | EPDM | FEP Encapsulated Silicone (O-Rings only) | FEP Encapsulated Viton® (O-Rings only) | None | Silicone | Viton®
Specifications Insert Style
Shortened 222 1/2"
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Operating Temperature
160 ºF | 71 ºC
Specifications Maximum Reverse Differential Pressuretemperature
40 psid | 2.8 bar
Specifications Nominal Length
40 in | 1000 mm
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | No Gasket

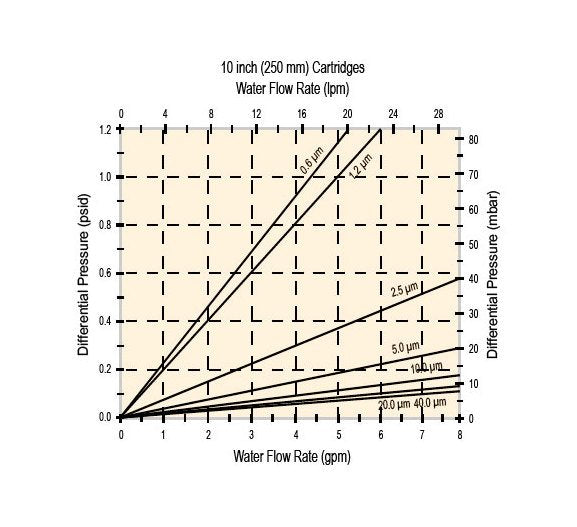

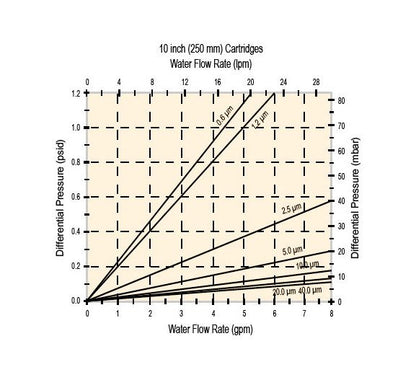

Specifications Water Flow Rates
0.6 µm - 4.2 gpm/psid (23.3 lpm/100 mbar) | 1.2 µm - 5.0 gpm/psid (27.4 lpm/100 mbar) | 2.5 µm - 13.5 gpm/psid (74.1 lpm/100 mbar) | 5.0 µm - 26.0 gpm/psid (142.7 lpm/100 mbar) | 10.0 µm - 40.0 gpm/psid (219.6 lpm/100 mbar) | 20.0 µm - 50.0 gpm/psid (274.4 lpm/100 mbar) | 40.0 µm - 60.0 gpm/psid (329.3 lpm/100 mbar)
Steam Sterilizable And Sanitizable 0
Cartridges can be steam sterilized for multiple cycles at 266ºF (130ºC) or sanitized for at least ten 30-minute cycles with 176ºF (80ºC) water. They are compatible with most sanitizing agents.
Technical Support And Product Information 0
Parker provides our customers with unsurpassed product consistency and cost efficiency. Our experienced professionals can help you select the right solution for your application. Orders can be emailed directly to PAFsales@parker.com. For additional information contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through the Oxnard office.Parker designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Coatings and Inks, Process and Chemical industries.
