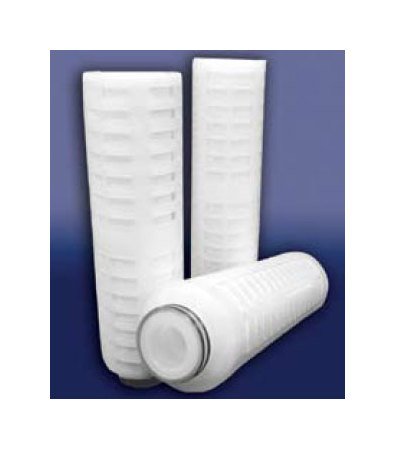

Polyflow-G Nominally Rated Depth Cartridges - Polypropylene Filter
Polyflow-G Nominally Rated Depth Cartridges - Polypropylene Filter
SKU:DEP-83acce
High-efficiency Polypropylene Depth Cartridges - Superior filtration at lower costs
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Polyflow-G Nominally Rated Depth Cartridges - Polypropylene Filter
$49.99
Quantity: 1
Claim Your Seller Account
Polyflow-G Nominally Rated Depth Cartridges - Polypropylene Filter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polyflow-G Nominally Rated Depth Cartridges are designed for cost-effective prefiltration in diverse process applications. Featuring high dirt-loading polypropylene depth media, these cartridges ensure consistent particle retention, clean filtrates, and excellent chemical compatibility. With longer filtration life and superior cost efficiency compared to other types, Polyflow-G is ideal for reducing downtime and enhancing processing efficiency.
Product Specifications
Applications 0
Liquid clarificationGeneral water filtrationBeverage/wine clarificationRO/DI prefiltration
Benefits 0
High flow rate and long service life reduce processing timeBroad chemical compatibility allows use in most applicationsThermally bonded construction minimizes extractables for cleaner filtrates
Materials Of Construction Depth Media Material
Polypropylene
Materials Of Construction Note
All components are thermally bonded to ensure integrity and reduce extractables
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notificationPolyflow® is a registered trademark of Parker Hannifin Corporation.Viton® is registered trademark of E.I. DuPont de Nemours & Co., Inc.Cuno® is a registered trademark of Cuno Inc.
Specifications Biological Safety
All components meet USP specifications for Class VI-121ºC Plastics criteria.
Specifications Bulk Packaging Per Carton
12
Specifications Cartridge Extractables
NVR < 35 mg per 10 inch (250 mm) cartridge
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
3.6 ft² | 0.33 m²
Specifications End Fittings
213/Recessed End Cap (Ametek) 222/Recessed End Cap
Specifications Gasketo Ring Material
Buna N (Standard) | EPDM | FEP Encapsulated Silicone (O-Rings only) | FEP Encapsulated Viton® (O-Rings only) | None | Silicone | Viton®
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Operating Temperature
160 ºF | 71 ºC
Specifications Maximum Reverse Differential Pressuretemperature
40 psid | 2.8 bar
Specifications Nominal Filter Rating
0.2 µm
Specifications Nominal Length
5 in | 125 mm
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | None

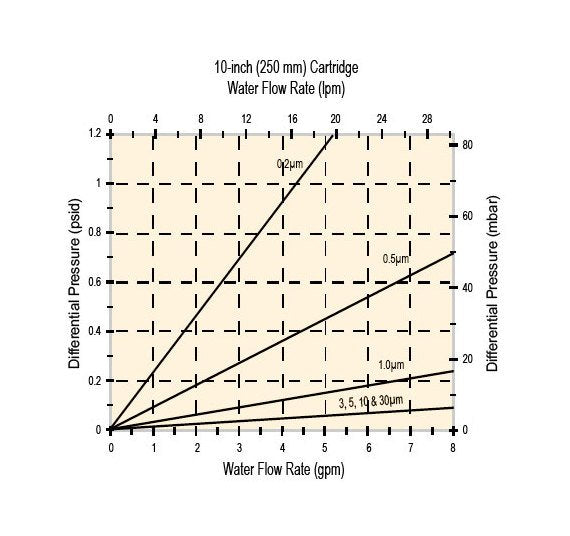

Specifications Water Flow Rates
4.2 gpm/psid | 23.3 lpm/100 mbar
Technical Support And Product Information 0
Parker provides our customers with unsurpassed product consistency and cost efficiency. Our experienced professionals can help you select the right solution for your application. Orders can be emailed directly to PAFsales@parker.com. For additional information contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through the Oxnard office.Parker designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Coatings and Inks, Process and Chemical industries.
