Polymer Concrete 6.5 in. Assembly with Stainless Steel Bolts
Polymer Concrete 6.5 in. Assembly with Stainless Steel Bolts
SKU:HAN-f3374d
Enhance infrastructure with the high-impact resistance of our Polymer Concrete Assembly, meeting WUC 3.6 and ANSI/SCTE 77 standards with open bottom design and stainless steel bolts.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Polymer Concrete 6.5 in. Assembly with Stainless Steel Bolts
$269.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete 6.5 in. Assembly with Stainless Steel Bolts
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

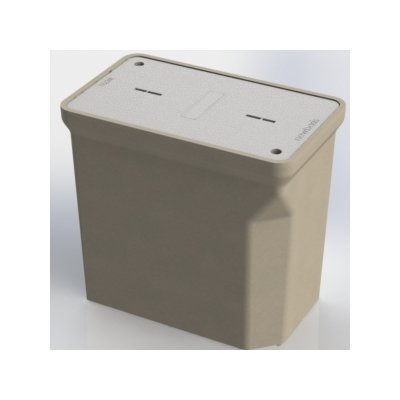

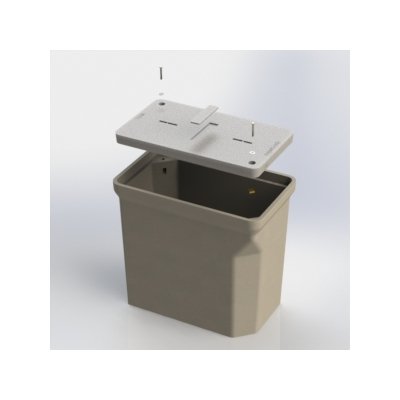

Upgrade your infrastructure with the newbasis PCX™ Polymer Concrete Assembly featuring straight sides, open bottom design, and high-impact resistance. This assembly meets WUC 3.6, ANSI/SCTE 77 standards, with a compressive strength of 11500 psi and flexural strength of 4000 psi. Constructed from UV-resistant materials, this assembly includes skid-resistant cover, cast-in floating nut box, and integral drain holes for added convenience and durability. Each assembly comes with a customizable nameplate option. Ensure reliability and compliance with this versatile and robust assembly suitable for various utility applications.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
24 in
Dimensional Attributes Inside Depth
23 1/4 in
Dimensional Attributes Inside Length
6 1/2 in | 11 13/16 in
Dimensional Attributes Inside Width For 11 1316 In Length
11 13/16 in
Dimensional Attributes Inside Width For 6 12 In Length
6 1/2 in
Dimensional Attributes Length
12 in
Dimensional Attributes Width
12 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
56.9 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
51.1 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
5.8 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1059 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
18
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
