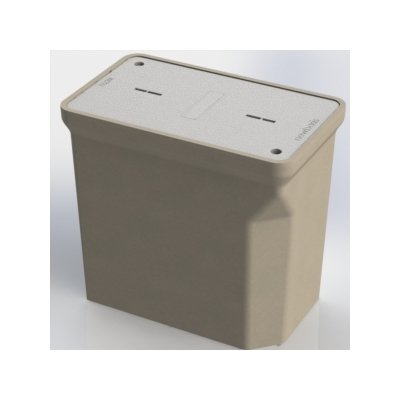

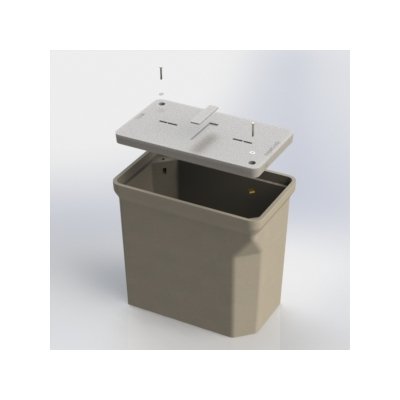

Polymer Concrete Assembly - 28 3/8 in. Opening Length, Straight Sides
Polymer Concrete Assembly - 28 3/8 in. Opening Length, Straight Sides
SKU:HAN-64403e
Durable Polymer Concrete Assembly with Straight Sides, compliant with WUC 3.6 & ANSI/SCTE 77 standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - 28 3/8 in. Opening Length, Straight Sides
$699.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - 28 3/8 in. Opening Length, Straight Sides
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled durability and reliability with our Polymer Concrete Assembly featuring a Straight Sides design. Crafted from advanced composite materials, this assembly offers high compressive and flexural strength, making it ideal for demanding environments. Compliant with WUC 3.6 and ANSI/SCTE 77 standards, it includes a skid-resistant cover, drop-in nameplate, and integral drain holes for added convenience and safety. Enhance your infrastructure with this versatile and long-lasting solution.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
24 in
Dimensional Attributes Inside Depth
21 in
Dimensional Attributes Inside Length
28 3/8 in | 33 9/16 in
Dimensional Attributes Inside Width For 28 38 In Length
16 3/4 in
Dimensional Attributes Inside Width For 33 916 In Length
21 15/16 in
Dimensional Attributes Length
36 in
Dimensional Attributes Width
24 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
342.4 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
224.4 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
98 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
2097 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
6
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
