Polymer Concrete Assembly - 29 in. Opening Length
Polymer Concrete Assembly - 29 in. Opening Length
SKU:HAN-bcf0aa
Durable Polymer Concrete Assembly with 29 in. Opening Length, Straight Sides, Open Bottom style. Complies with WUC 3.6 and ANSI/SCTE 77 standards.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - 29 in. Opening Length
$999.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - 29 in. Opening Length
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

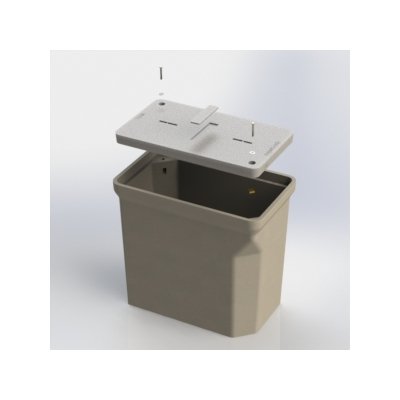

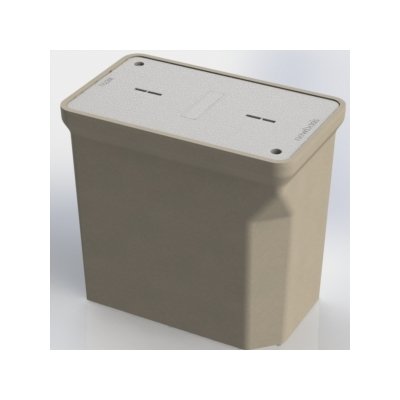

The Polymer Concrete Assembly with 29 in. Opening Length is a durable and versatile solution for various applications. Featuring a Straight Sides design with Open Bottom style and made of high-strength Polymer Concrete material, this assembly meets stringent industry standards including WUC 3.6 and ANSI/SCTE 77. With a Compressive Strength of 11500 psi and Flexural Strength of 4000 psi, it offers superior load-bearing capabilities. Notable features include a Skid-resistant cover, Cast-in floating nut box with Integral drain holes, and the option for Drop-In or Custom Nameplates to suit specific requirements.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
18 in
Dimensional Attributes Inside Depth
15 in
Dimensional Attributes Inside Length
29 in | 33 9/16 in
Dimensional Attributes Inside Width For 29 In Length
17 3/8 in
Dimensional Attributes Inside Width For 33 916 In Length
21 15/16 in
Dimensional Attributes Length
36 in
Dimensional Attributes Width
24 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
298.6 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
200.6 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
98 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
2432 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
8
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
