Polymer Concrete Assembly - 31 3/4 in. Opening Length
Polymer Concrete Assembly - 31 3/4 in. Opening Length
SKU:HAN-fda141
Premium Polymer Concrete Assembly with stainless steel hex bolts, compliant with WUC 3.6, ANSI/SCTE 77 standards. Ideal for high-strength requirements.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - 31 3/4 in. Opening Length
$799.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - 31 3/4 in. Opening Length
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

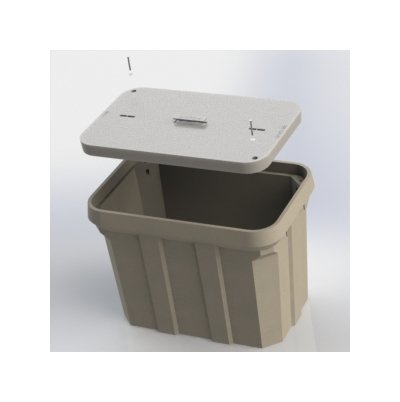

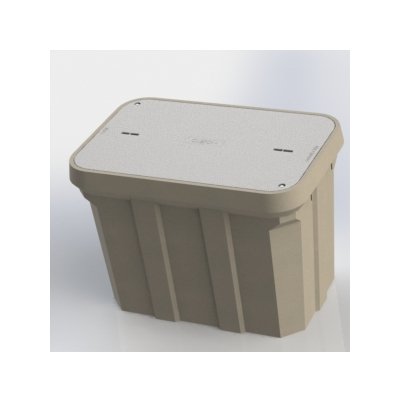

The Polymer Concrete Assembly - 31 3/4 in. Opening Length is a robust solution designed to meet stringent institutional requirements. Made from high-strength Polymer Concrete, it features a straight-sided, open-bottom structure with stainless steel hex bolts for secure fastening. Compliant with WUC 3.6, ANSI/SCTE 77 standards, this assembly offers exceptional compressive and flexural strength, making it ideal for installations requiring reliability and durability. With advanced composite material properties and a skid-resistant cover, this assembly is USDA/RUS approved, ensuring top-notch performance in varied environments.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
33 in
Dimensional Attributes Inside Length
31 3/4 in | 33 1/2 in
Dimensional Attributes Inside Width For 31 34 In Length
31 3/4 in
Dimensional Attributes Inside Width For 33 12 In Length
33 1/2 in
Dimensional Attributes Length
36 in
Dimensional Attributes Width
36 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
610 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
397 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
213 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1260 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
