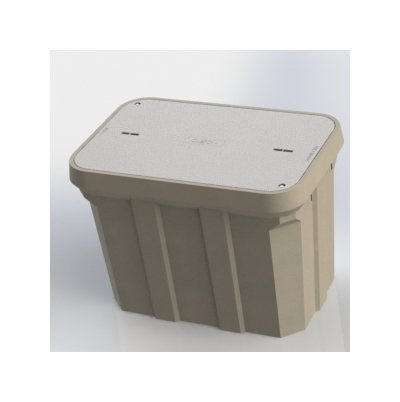

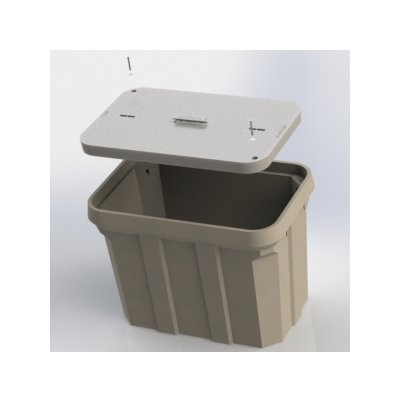

Polymer Concrete Assembly - 41 1/16 in. Opening Length
Polymer Concrete Assembly - 41 1/16 in. Opening Length
SKU:HAN-5410a5
High-strength Polymer Concrete Assembly with open-bottom design, stainless steel bolts, and ASTM compliance. Customizable nameplates.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - 41 1/16 in. Opening Length
$899.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - 41 1/16 in. Opening Length
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled strength and durability with our Polymer Concrete Assembly featuring an open-bottom design, straight sides, and corrosion-resistant stainless steel bolts. Compliant with WUC 3.6, ANSI/SCTE 77 standards, this assembly boasts a compressive strength of 11500 psi, making it ideal for incidental traffic areas like parking lots and sidewalks. The advanced composite material offers high impact resistance, UV protection, and resistance to chemicals and moisture. Customize with standard or custom nameplates. Shipping includes van delivery within the lower 48 states.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
24 in
Dimensional Attributes Inside Depth
21 in
Dimensional Attributes Inside Length
41 1/16 in | 45 13/16 in
Dimensional Attributes Inside Width For 41 116 In Length
23 1/16 in
Dimensional Attributes Inside Width For 45 1316 In Length
28 3/16 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
405 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
244.9 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
160.2 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1241 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
3
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
