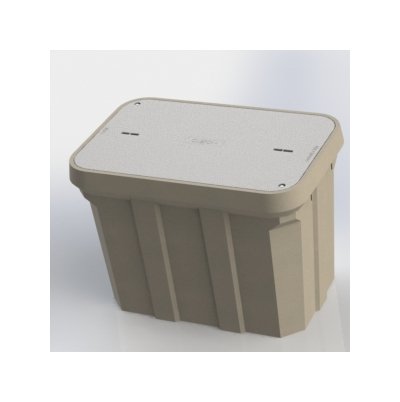

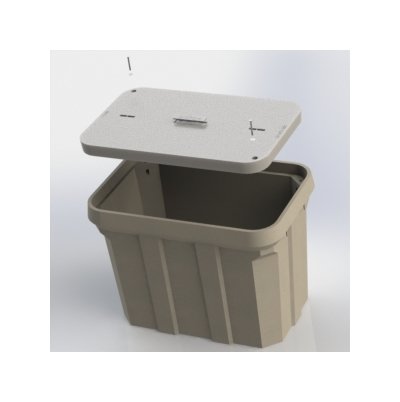

Polymer Concrete Assembly - 55 1/2 in. Opening Length, Straight Sides
Polymer Concrete Assembly - 55 1/2 in. Opening Length, Straight Sides
SKU:HAN-1eb6be
Enhance infrastructure with the high-strength Polymer Concrete Assembly - compliant, skid-resistant, and durable.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - 55 1/2 in. Opening Length, Straight Sides
$1,499.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - 55 1/2 in. Opening Length, Straight Sides
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your infrastructure with the durable Polymer Concrete Assembly featuring straight sides and a 55 1/2 inch opening length. Compliant with WUC 3.6, ANSI/SCTE 77 standards, this assembly offers superior strength with a compressive strength of 11500 psi. It includes stainless steel hex bolts, skid-resistant cover, and cast-in floating nut box, making it ideal for parking lots, sidewalks, and more. With USDA/RUS approval and advanced composite materials, this assembly ensures longevity and reliability.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
45 in
Dimensional Attributes Inside Length
55 1/2 in | 62 3/8 in
Dimensional Attributes Inside Width For 55 12 In Length
43 3/8 in
Dimensional Attributes Inside Width For 62 38 In Length
50 1/4 in
Dimensional Attributes Length
60 in
Dimensional Attributes Width
48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
1468.1 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
893.11 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
575.04 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1527 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
