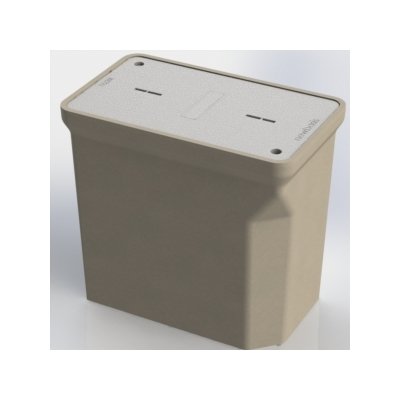

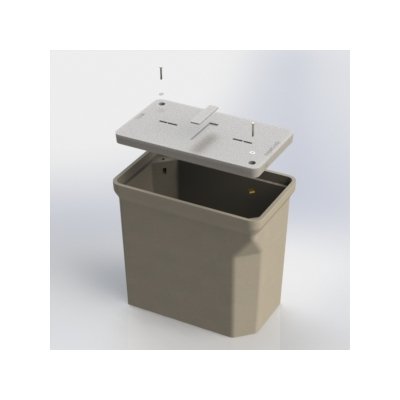

Polymer Concrete Assembly 9 1/4 in. Opening Length
Polymer Concrete Assembly 9 1/4 in. Opening Length
SKU:HAN-4a211f
Durable Polymer Concrete Assembly with straight sides, 3/8" Stainless Steel Hex Bolts, and high compressive strength. Compliant with WUC 3.6 and ANSI/SCTE 77 standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Polymer Concrete Assembly 9 1/4 in. Opening Length
$399.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly 9 1/4 in. Opening Length
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional durability and reliability with our Polymer Concrete Assembly featuring a straight-side design, 3/8" Stainless Steel Hex Bolts, and high compressive strength of 11500 psi. This open-bottom assembly complies with WUC 3.6 and ANSI/SCTE 77 standards, ensuring top-notch performance. With skid-resistant cover, integral drain holes, and a load capacity suitable for incidental traffic like parking lots and sidewalks, this assembly is ideal for telecom, utility, and municipal applications.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
12 in
Dimensional Attributes Inside Depth
11 1/4 in
Dimensional Attributes Inside Length
9 1/4 in | 11 13/16 in
Dimensional Attributes Inside Width For 11 1316 In Length
11 13/16 in
Dimensional Attributes Inside Width For 9 14 In Length
9 1/4 in
Dimensional Attributes Length
12 in
Dimensional Attributes Width
12 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
33.5 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
27.7 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
5.8 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
940 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
27
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
