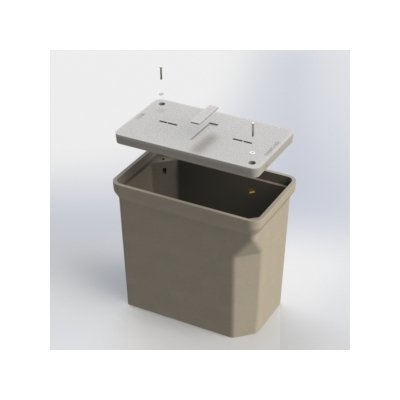

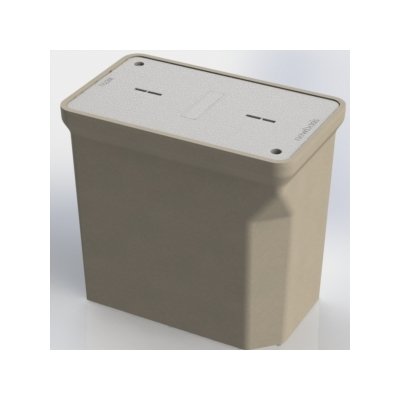

Polymer Concrete Assembly - Straight Sides, Open Bottom, 19 3/4 in. Length
Polymer Concrete Assembly - Straight Sides, Open Bottom, 19 3/4 in. Length
SKU:HAN-53b4c0
Durable Polymer Concrete Assembly with high strength and industry compliance. Ideal for utility applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Polymer Concrete Assembly - Straight Sides, Open Bottom, 19 3/4 in. Length
$499.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Assembly - Straight Sides, Open Bottom, 19 3/4 in. Length
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your infrastructure with this Polymer Concrete Assembly featuring a high compressive strength of 11500 psi and advanced composite materials. Built to meet industry standards like WUC 3.6 and ANSI/SCTE 77, this assembly is designed for durability and performance. With features like a skid-resistant cover, drop-in nameplate, and integral drain holes, it offers a reliable solution for various utility applications.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
18 in
Dimensional Attributes Inside Depth
16 in
Dimensional Attributes Inside Length
19 3/4 in | 22 5/16 in
Dimensional Attributes Inside Width For 19 34 In Length
10 1/4 in
Dimensional Attributes Inside Width For 22 516 In Length
12 13/16 in
Dimensional Attributes Length
24 in
Dimensional Attributes Width
13 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
111.7 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
73.4 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
38.3 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1153 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
10
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
