Polymer Concrete Handhole Assembly - 14 1/8 in. Opening Length
Polymer Concrete Handhole Assembly - 14 1/8 in. Opening Length
SKU:HAN-414b9f
Durable Polymer Concrete Handhole Assembly - 14 1/8 in. Opening, Meets WUC 3.6 & ANSI/SCTE 77 Standards, Ideal for Utility Projects
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Polymer Concrete Handhole Assembly - 14 1/8 in. Opening Length
$499.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Handhole Assembly - 14 1/8 in. Opening Length
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

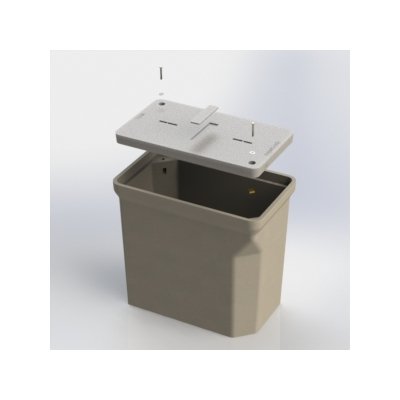

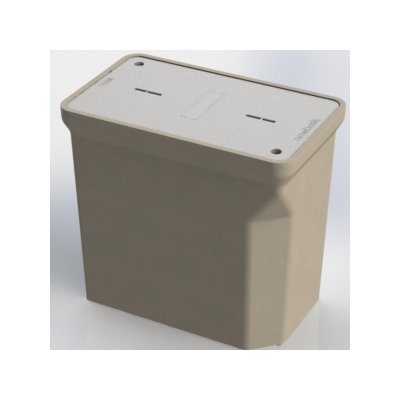

The Polymer Concrete Handhole Assembly with a 14 1/8 in. Opening Length is a durable and reliable solution for underground utility access. Built to meet WUC 3.6 and ANSI/SCTE 77 standards, this assembly features a straight-sided design with a load-bearing capacity suited for incidental traffic. Made of high-strength Polymer Concrete material, it offers advanced composite properties such as non-conductivity, UV resistance, and chemical impermeability. The assembly includes skid-resistant covers, a drop-in nameplate, and integral drain holes for added convenience and safety. Ideal for telecommunications, electrical, and utility infrastructure projects.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
12 in
Dimensional Attributes Inside Depth
10 in
Dimensional Attributes Inside Length
14 1/8 in | 15 15/16 in
Dimensional Attributes Inside Width For 14 18 In Length
7 3/8 in
Dimensional Attributes Inside Width For 15 1516 In Length
9 3/16 in
Dimensional Attributes Length
18 in
Dimensional Attributes Width
11 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
58.9 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
34.8 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
24.1 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K''
Specifications Loaded Pallet Weight
1271 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
21
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
