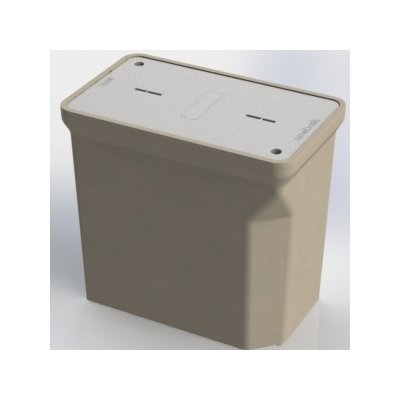

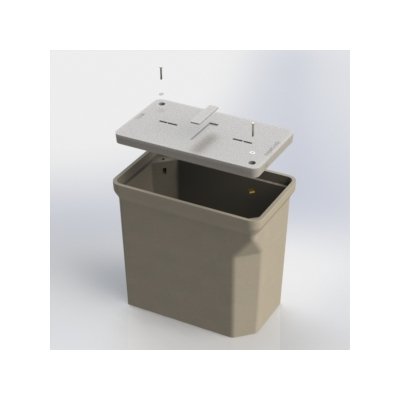

The Polymer Concrete Handhole Assembly features a straight-sided design with a load-bearing capacity meeting WUC 3.6 and ANSI/SCTE 77 2010 -''T15/20K'' standards. Constructed with stainless steel 3/8" Hex Bolts, this assembly offers superior durability and resistance to environmental factors. With a compressive strength of 87 MPa and advanced composite materials tested per ASTM standards, it ensures long-lasting performance. The assembly comes equipped with a skid-resistant cover, UL classified polymer concrete, and a cast-in floating nut box for enhanced installation ease. Ideal for telecommunications, electrical, and municipal applications.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
24 in
Dimensional Attributes Inside Depth
21 in
Dimensional Attributes Inside Length
19 13/16 in | 22 7/16 in
Dimensional Attributes Inside Width For 19 1316 In Length
19 13/16 in
Dimensional Attributes Inside Width For 22 716 In Length
22 7/16 in
Dimensional Attributes Length
24 in
Dimensional Attributes Width
24 in
Features
UL classified polymer concreteDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77 - 2010
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
301.2 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
196.2 lb
Specifications Brand
newbasis
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
105 lb
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 2010 - ''T15/20K"
Specifications Loaded Pallet Weight
1850 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
6
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
