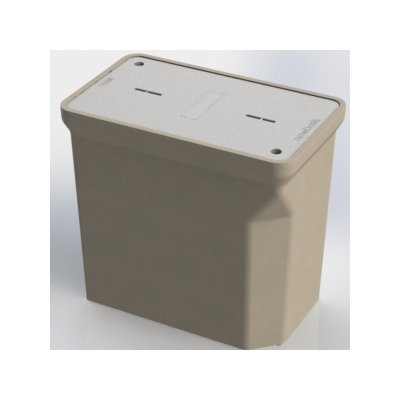

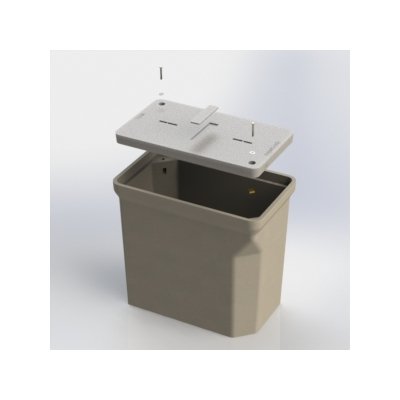

Polymer Concrete Handhole Assembly - 30-inch Opening
Polymer Concrete Handhole Assembly - 30-inch Opening
SKU:HAN-1ea7fd
Get the durable and compliant Polymer Concrete Handhole Assembly for reliable utility installations. Customize options available.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Polymer Concrete Handhole Assembly - 30-inch Opening
$999.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Handhole Assembly - 30-inch Opening
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polymer Concrete Handhole Assembly features a straight sides design, open bottom, and complies with WUC 3.6, ANSI/SCTE 77-''T15/20K'' standards. Built with high-quality materials including stainless steel bolts, this assembly boasts a compressive strength of 11500 psi and a flexural strength of 4000 psi. It comes with various load rating options, skid-resistant cover, and advanced composite material properties for durability and performance. Customizable nameplates and additional options are available, making it a versatile solution for telecom, power, and municipal applications.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
30 in
Dimensional Attributes Inside Depth
27 in
Dimensional Attributes Inside Length
30 in | 33 9/16 in
Dimensional Attributes Inside Width For 30 In Length
18 3/8 in
Dimensional Attributes Inside Width For 33 916 In Length
21 15/16 in
Dimensional Attributes Length
36 in
Dimensional Attributes Width
24 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
385.6 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
287.6 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
98 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1585 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
