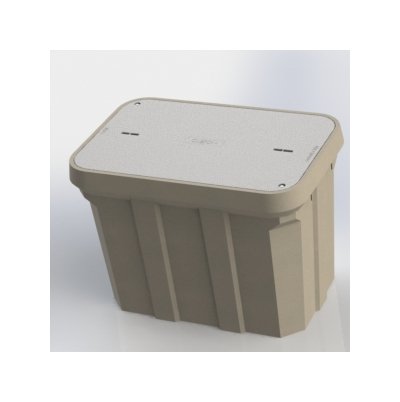

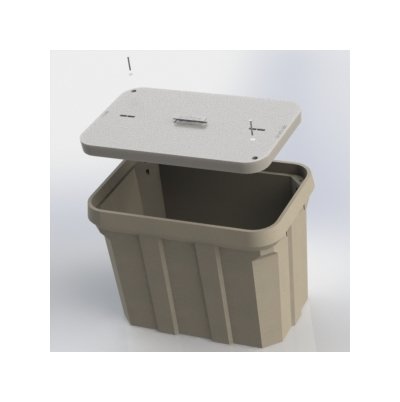

Polymer Concrete Handhole Assembly, 92 in. Opening Length
Polymer Concrete Handhole Assembly, 92 in. Opening Length
SKU:HAN-fb57e0
Durable Polymer Concrete Handhole Assembly with UV resistance and custom nameplate options for lasting utility infrastructure solutions.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Polymer Concrete Handhole Assembly, 92 in. Opening Length
$2,499.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Handhole Assembly, 92 in. Opening Length
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polymer Concrete Handhole Assembly offers exceptional durability and strength for telecommunications and utility infrastructure. Compliant with WUC 3.6, ASTM, and ANSI/SCTE standards, it features a straight-sided design, stainless steel hardware, high compressive and flexural strengths, and skid-resistant cover. With custom nameplate options, UV resistance, and impact resistance, this assembly ensures long-lasting performance in various environments.
Product Specifications
Available Options
Penta Bolts, Standard Nameplate Installed, Standard Nameplate Shipped Separately, Custom Nameplate Installed, Custom Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
45 in
Dimensional Attributes Inside Length
92 in | 94 in
Dimensional Attributes Inside Width For 92 In Length
45 in
Dimensional Attributes Inside Width For 94 In Length
47 in
Dimensional Attributes Length
96 in
Dimensional Attributes Width
48 in
Features
UL classified polymer concreteDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77 - 2010
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
1894 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
1220 lb
Specifications Brand
newbasis
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
674 lb
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - 2010 Tier 15
Specifications Loaded Pallet Weight
1954 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
