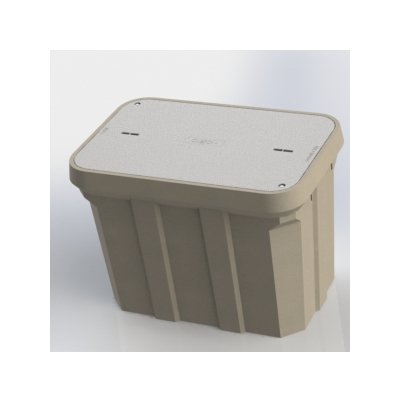

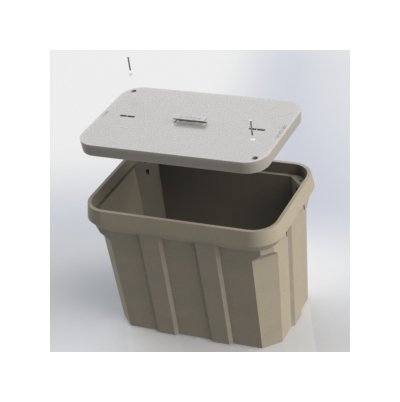

Polymer Concrete Handhole Assembly - Straight Sides, Open Bottom, 39 13/16 in.
Polymer Concrete Handhole Assembly - Straight Sides, Open Bottom, 39 13/16 in.
SKU:HAN-c2edb4
Durable and compliant Polymer Concrete Handhole Assembly with straight sides and open bottom design, ideal for various infrastructure applications.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Polymer Concrete Handhole Assembly - Straight Sides, Open Bottom, 39 13/16 in.
$999.99
Quantity: 1
Claim Your Seller Account
Polymer Concrete Handhole Assembly - Straight Sides, Open Bottom, 39 13/16 in.
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your infrastructure with this Polymer Concrete Handhole Assembly featuring Straight Sides and an Open Bottom design for easy access. Built to meet WUC 3.6 and ANSI/SCTE 77 standards, this assembly boasts a Compressive Strength of 11500 psi and Flexural Strength of 4000 psi. With its advanced composite material properties, UV resistance, and high impact resistance, it ensures long-lasting durability. Includes skid-resistant cover, nameplate options, and integral drain holes. Suitable for incidental traffic areas like parking lots and sidewalks.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
45 in
Dimensional Attributes Inside Length
39 13/16 in | 45 13/16 in
Dimensional Attributes Inside Width For 39 1316 In Length
22 3/16 in
Dimensional Attributes Inside Width For 45 1316 In Length
28 3/16 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
651 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
592 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
219 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
851 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
