Polyphenylene Sulfide Sheet
Polyphenylene Sulfide Sheet
SKU:SHA-6b984c
Discover superior chemical resistance and dimensional stability with our Polyphenylene Sulfide Sheet. Ideal for precise components with high heat tolerance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Polyphenylene Sulfide Sheet
$79.99
Quantity: 1
Claim Your Seller Account
Polyphenylene Sulfide Sheet
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

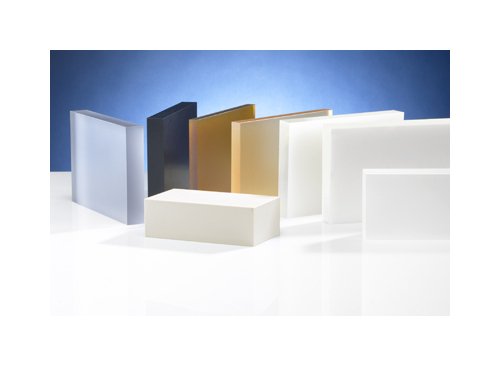

Experience the exceptional chemical resistance and dimensional stability of our Polyphenylene Sulfide Sheet. With unparalleled resistance to solvents and high temperatures, this off-white sheet is perfect for high precision components. Its low thermal expansion, flame retardant properties, and impressive electrical characteristics make it a top choice for various industrial applications.
Product Specifications
Advantages 0
High Strength.Excellent chemical & hydrolysis resistance.Very good dimensional stability.Excellent wear & frictional behavior.Inherent low flammability. Excellent alternative to PEEK at lower temperatures.Good electrical insulating & dielectric properties.Essentially zero moisture absorption.
Applications 0
Pump housings.High pressure liquid Chromatography components.Chip nests.Retaining rings.Wafer Carriers.Laboratory & Analytical Equipment.
Specifications Astm Shape Spec
ASTM D 6358
Specifications Availability
stock
Specifications Coefficient Of Friction Dynamic
.40
Specifications Color
Off-white
Specifications Dielectric Strength
540 V/mil
Specifications Flammability Rating Ul 94
V0 (.125")
Specifications Flexural Modulus
575000 psi
Specifications Flexural Strength
21000 psi
Specifications Hardness Durometer Shore D
85
Specifications Heat Deflection Temperature 264 Psi
250 ºF
Specifications Impact Strength Notched
.60 ft·lb/in
Specifications Material
PPS
Specifications Maximum Operating Temperature
425 ºF
Specifications Minimum Order
1
Specifications Optional Sheet Size
12"x48"⢠24"x48"
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.35
Specifications Tensile Strength
13500 psi
Specifications Thickness
2.00 in
Specifications Tolerance
+only in
Specifications Weight
1.76 lb/ft²
