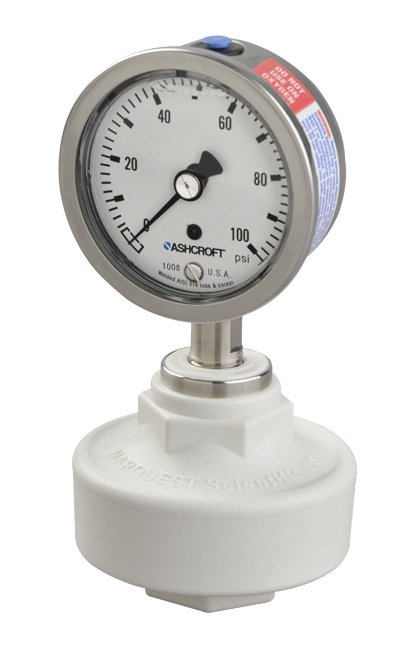

Polypro Body Gauge Isolator with All Stainless 2.5' Gauge
Polypro Body Gauge Isolator with All Stainless 2.5' Gauge
SKU:GAU-e874a6
Protect & isolate instruments with precision using our Polypro Body Gauge Isolator w/ All Stainless 2.5' Gauge. Reliable & compliant.
Regular price
$296.50
Regular price
Sale price
$296.50
Unit price
per
Initiate Order
Polypro Body Gauge Isolator with All Stainless 2.5' Gauge
$296.50
Quantity: 1
Claim Your Seller Account
Polypro Body Gauge Isolator with All Stainless 2.5' Gauge
$296.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your pressure sensing setup with our Polypro Body Gauge Isolator featuring a PTFE diaphragm and a durable All Stainless 2.5' Gauge. Designed with impermeable membranes for total isolation from system media, accurate pressure transmission, and low maintenance. This isolator meets stringent industry standards, offering chemical resistance, purity levels, and a self-venting internal shape for easy filling. With reinforced connections and a replaceable diaphragm, it ensures long-lasting performance and compliance for institutional buyers.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-60 PSI, All Stainless
Specifications List Price
296.5 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
