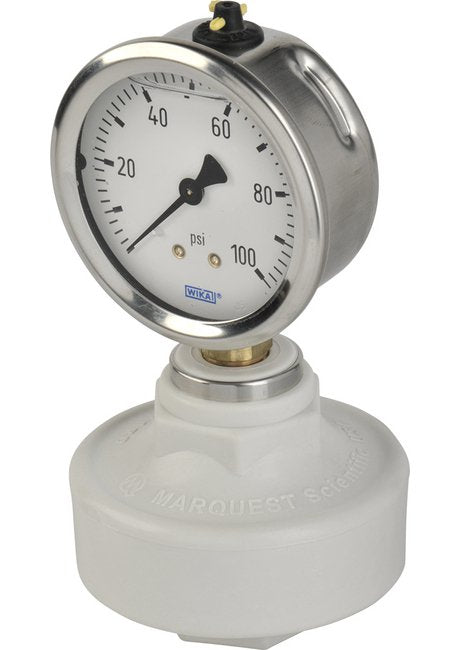

Polypro Gauge Guard with Wika Stainless Brass 2.5" Gauge
Polypro Gauge Guard with Wika Stainless Brass 2.5" Gauge
SKU:GAU-738e73
Isolate pressure instruments with precision using the Polypro Gauge Guard & Wika Stainless Brass 2.5" Gauge.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
Polypro Gauge Guard with Wika Stainless Brass 2.5" Gauge
$235.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Guard with Wika Stainless Brass 2.5" Gauge
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypro Gauge Guard with Wika Stainless Brass 2.5" Gauge is expertly designed for precision and durability in protecting and isolating pressure sensing instruments. Featuring an impermeable EPDM diaphragm for accurate pressure transmission, reinforced stainless steel instrument connection, and ANSI Schedule 120 compliant wall thickness, this gauge guard ensures total isolation from system media. With a low profile design to eliminate dead volume and spherical pressure containment for optimum performance, this product offers ease of installation and maintenance, making it a reliable choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-200 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
