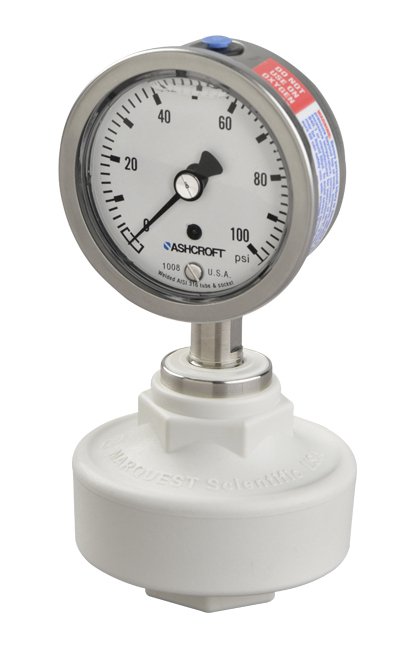

Polypro Gauge Isolator: Ashcroft 2.5" All Stainless Gauge
Polypro Gauge Isolator: Ashcroft 2.5" All Stainless Gauge
SKU:GAU-e82881
Protect pressure instruments efficiently with our Polypro Gauge Isolator featuring a Viton diaphragm & stainless steel components.
Regular price
$302.95
Regular price
Sale price
$302.95
Unit price
per
Initiate Order
Polypro Gauge Isolator: Ashcroft 2.5" All Stainless Gauge
$302.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator: Ashcroft 2.5" All Stainless Gauge
$302.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing accuracy with our Polypro Gauge Isolator featuring a Viton diaphragm and 1/4" Female NPT Inlet Connection. This durable isolator boasts a stainless steel reinforced instrument connection, ANSI Schedule 120 compliant wall thickness, and a low dead volume design. Perfect for protecting and isolating pressure instruments, it offers a 3-year limited warranty for added peace of mind.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE®, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-30 PSI, All Stainless
Specifications List Price
302.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
