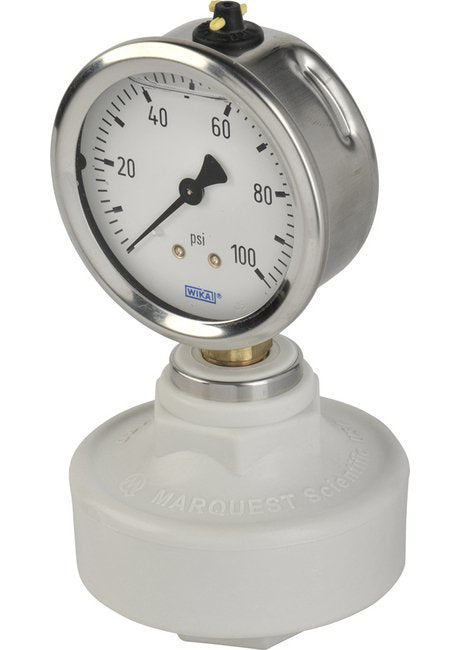

Polypro Gauge Isolator w/ Stainless Brass Wika 2.5" Gauge
Polypro Gauge Isolator w/ Stainless Brass Wika 2.5" Gauge
SKU:GAU-1bcfb0
Protect and isolate pressure instruments with precision using the Polypro Gauge Isolator with Viton Diaphragm & Stainless Wika Gauge. Ultimate accuracy and durability.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
Polypro Gauge Isolator w/ Stainless Brass Wika 2.5" Gauge
$235.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator w/ Stainless Brass Wika 2.5" Gauge
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypro Gauge Isolator with Viton Diaphragm and Wika Stainless Brass 2.5" Gauge provides top-notch protection and isolation for pressure sensing instruments. With an impermeable Viton diaphragm ensuring accurate pressure transmission, reinforced stainless steel connections, and a low profile design to eliminate dead volume, this isolator meets stringent industry standards for chemical resistance and purity. It offers easy installation, maintenance, and a 3-year limited warranty for peace of mind.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-100 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
